Pipe-Mount Butterfly Gate Latch for Chain Link Gates

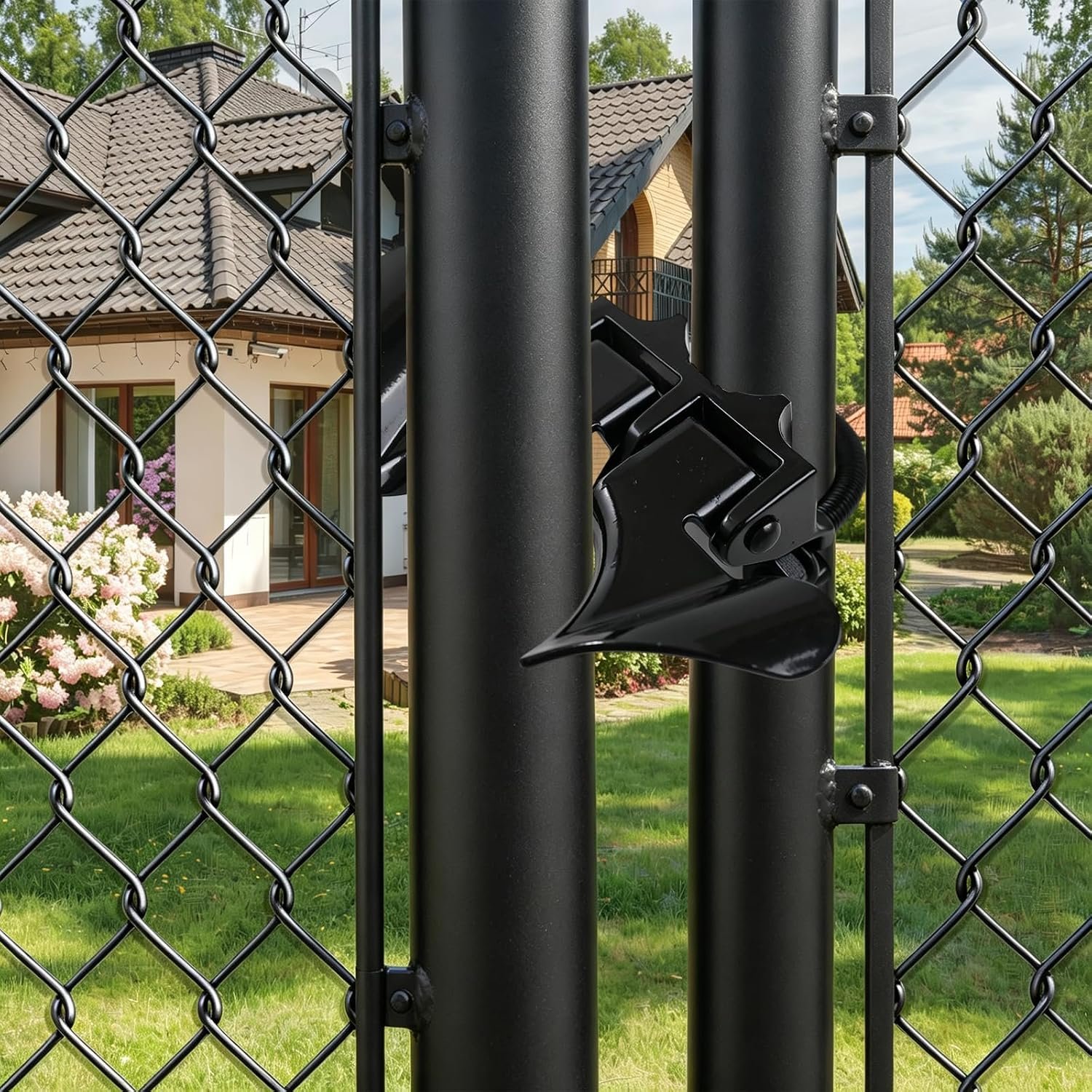

This butterfly latch mounts directly to a round gate-frame tube and closes around the stationary gate post. Its compact pipe-mounted design is intended for chain-link swing gates and avoids the wall-clearance requirement associated with flat-back wall-mount latches.
Choose by both tube diameters: measure the actual outside diameter of the stationary gate post and the round gate-frame tube. These are two separate measurements.
Functional features

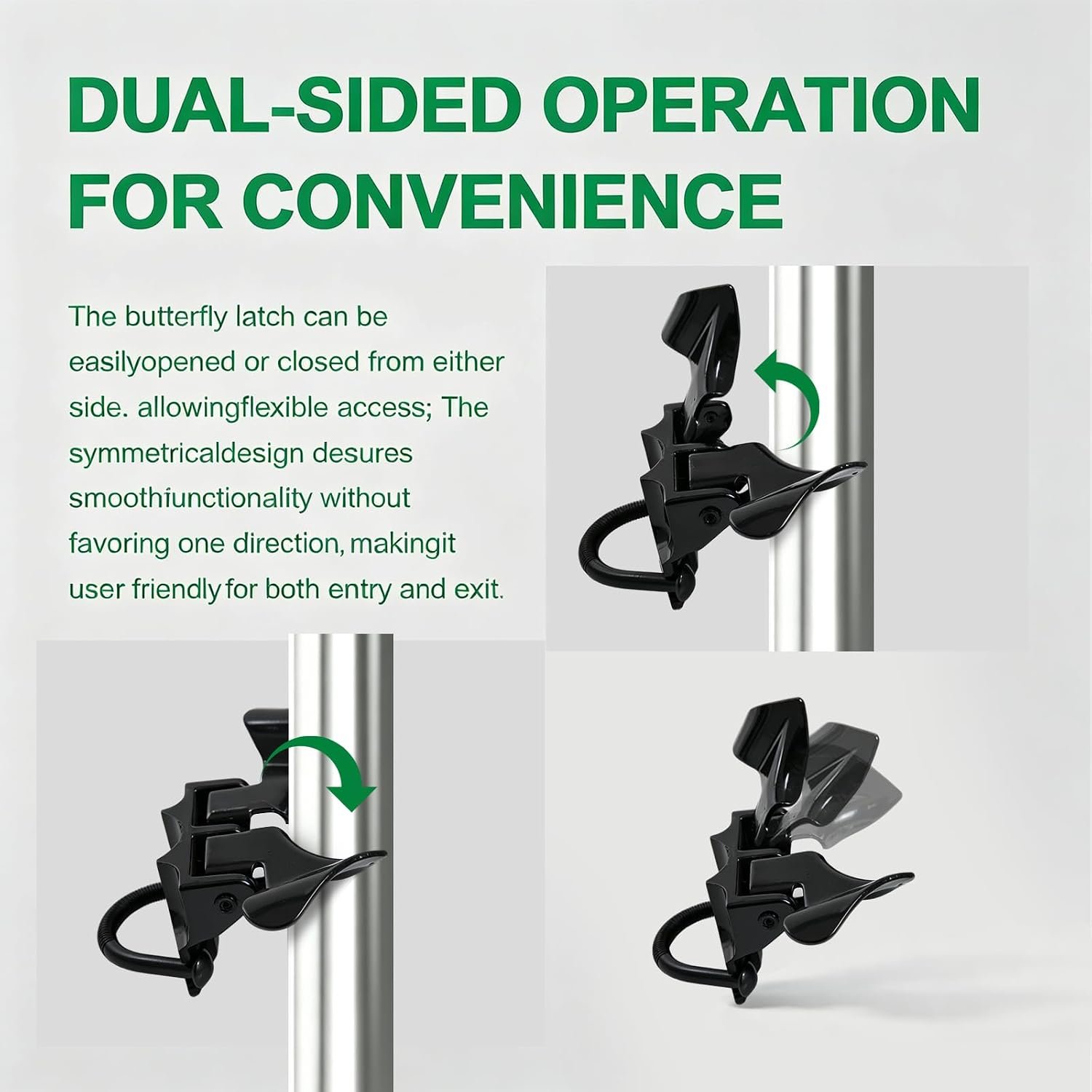

- Dual-sided operation: raised operating wings allow the latch to be opened from either side of the gate.

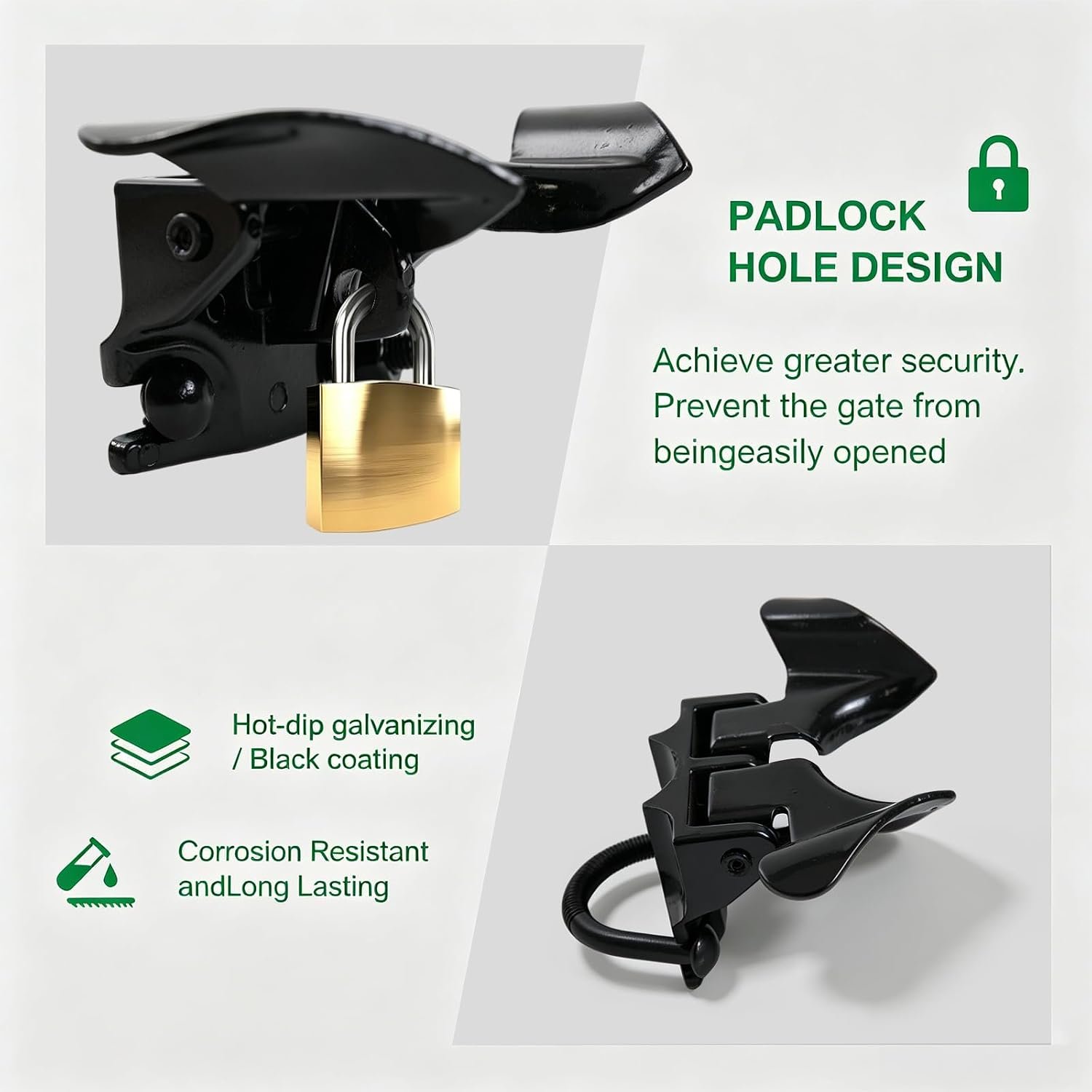

- Padlock-ready security: a built-in locking hole allows a compatible padlock to be added after the gate is closed.
- Pipe-mounted installation: the threaded U-bolt assembly secures the latch to the round gate-frame tube.
- Self-closing hinge compatible: suitable for use in properly aligned chain-link swing-gate systems equipped with self-closing hinges.

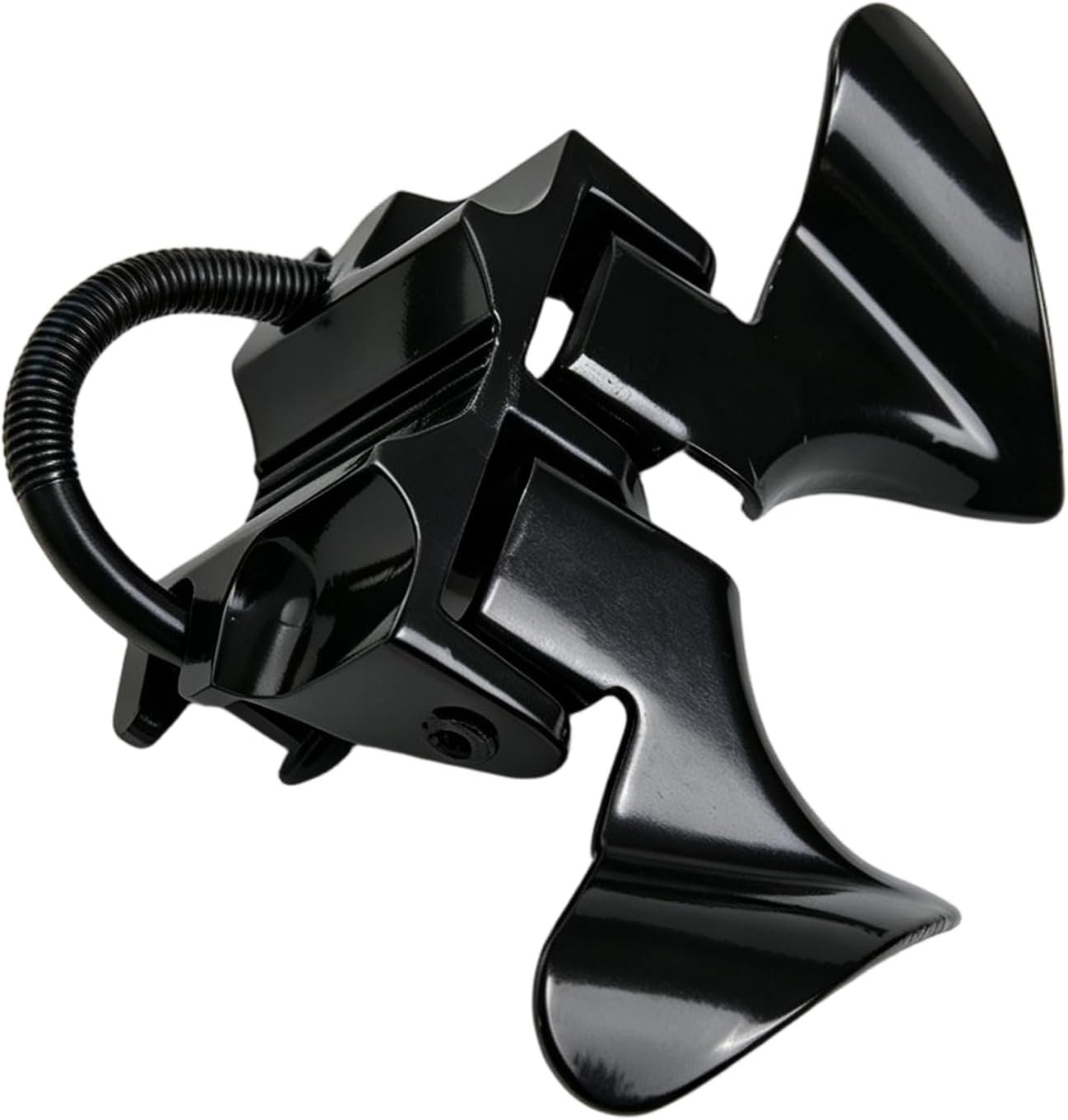

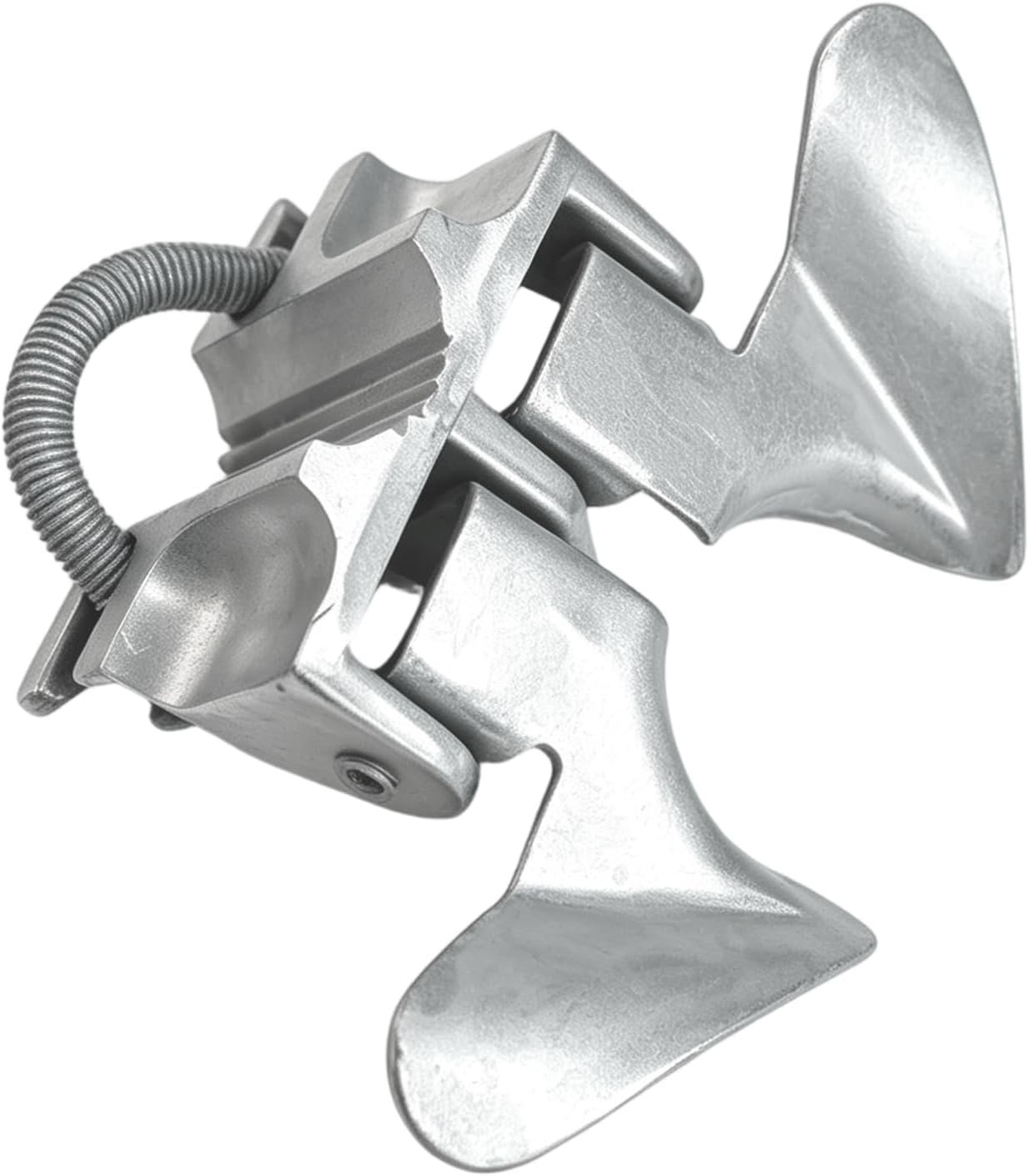

Finish options: Silver has a hot-dip galvanized finish for outdoor corrosion protection; zinc texture and appearance may naturally vary. Black uses a zinc-plated base with a UV-resistant black powder-coated finish for layered corrosion protection and a coordinated black appearance.
Technical specifications
| Product type | Pipe-mount butterfly latch for chain-link swing gates |
|---|---|
| Mounting location | Round gate-frame tube |

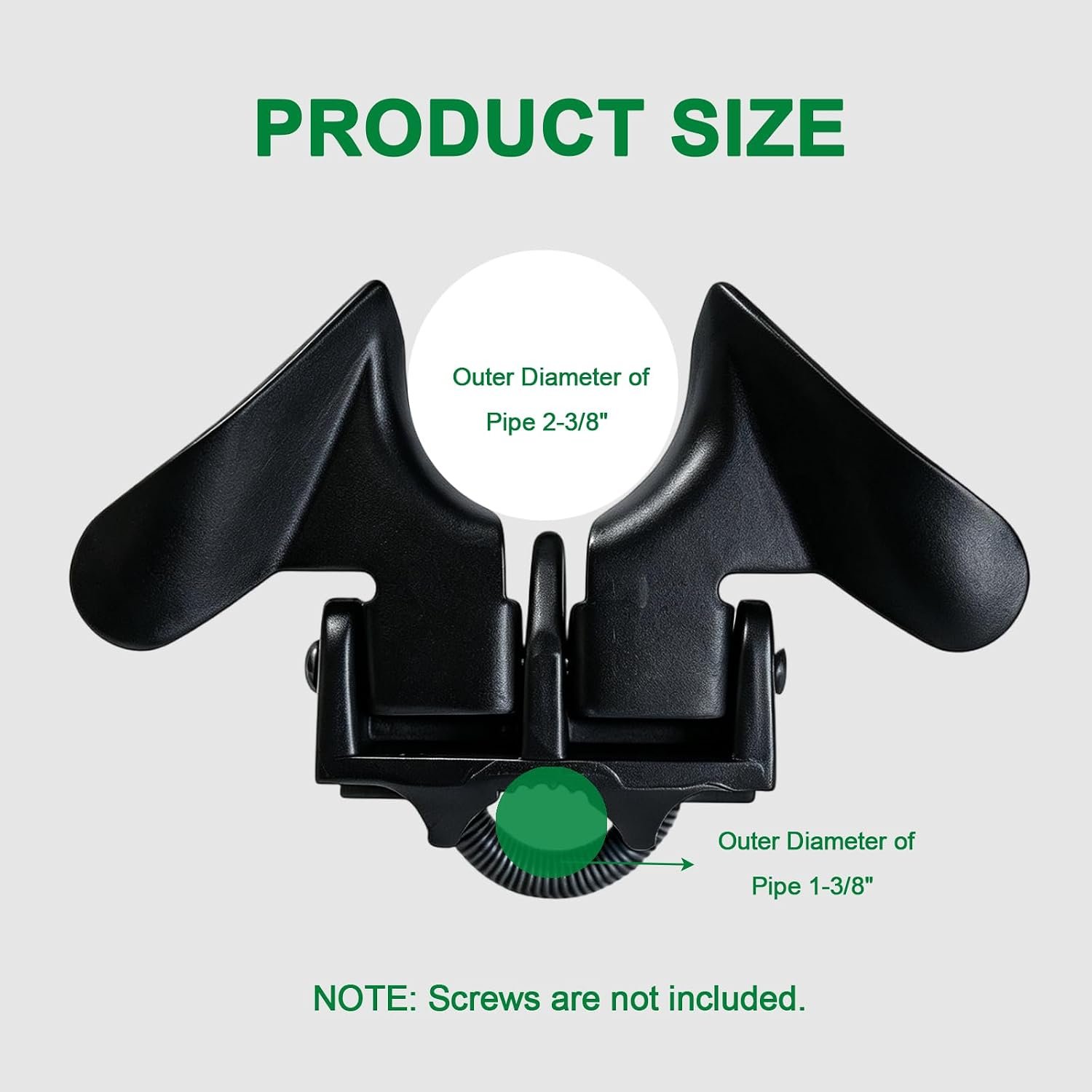

| Compatible gate-post OD | 1-7/8″ or 2-3/8″ |
| Compatible gate-frame OD | 1-3/8″ or 1-5/8″ |
| Finish options | Silver – hot-dip galvanized; Black – zinc-plated base with UV-resistant black powder coating |
| Operation | Accessible from either side of the gate |
| Security provision | Built-in padlock hole |
| Mounting method | Threaded U-bolt clamp assembly |

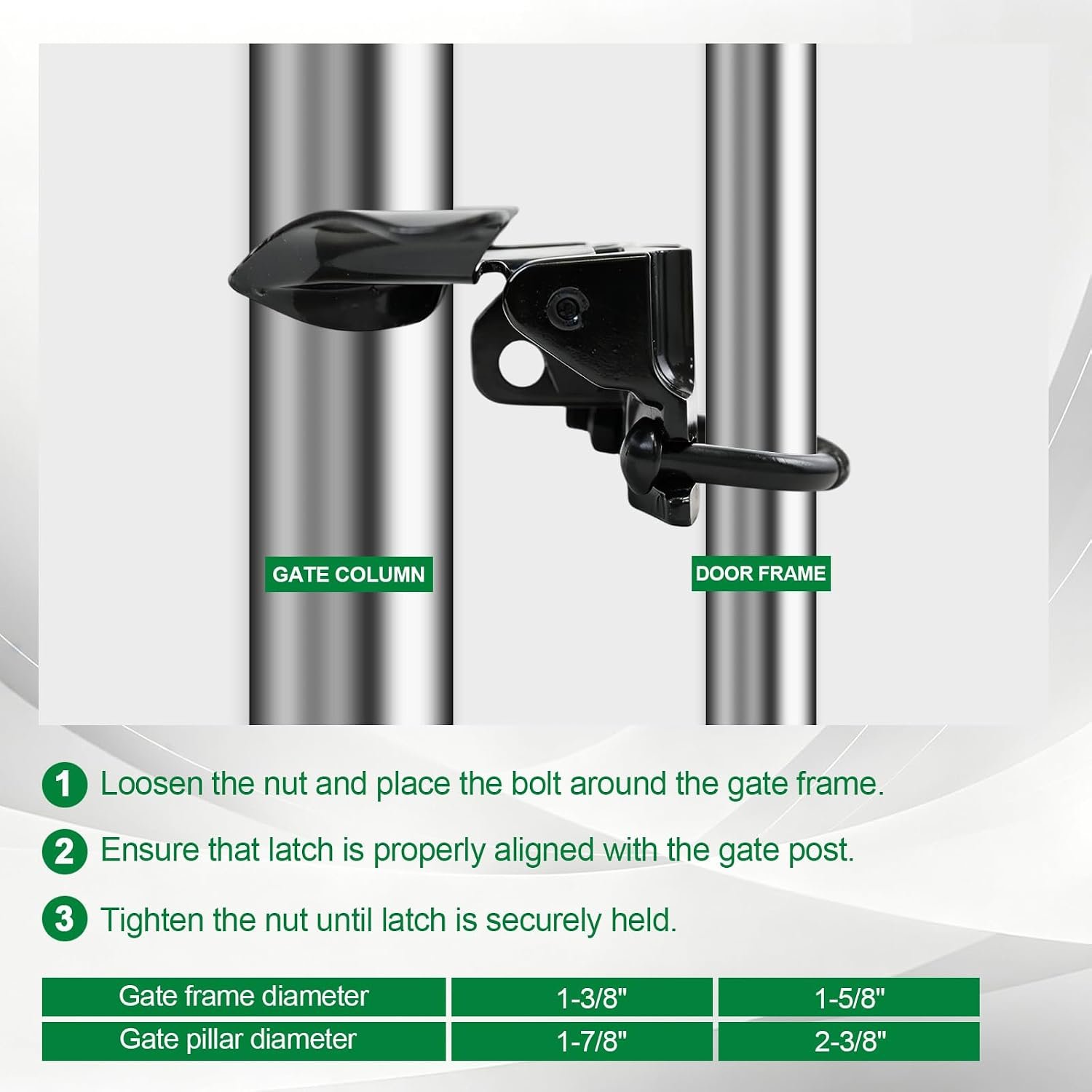

Installation guidance
- Confirm the gate-post OD and gate-frame OD before selecting an option.
- Position the latch on the gate-frame tube and align it with the stationary gate post.
- Secure the threaded U-bolt assembly evenly without distorting the gate frame.
- Cycle the gate several times and confirm smooth engagement from both sides before final tightening.
- Recheck alignment and fastener tightness after initial use.
Selection notice: choose the required gate-post OD, gate-frame OD and finish on Amazon. For project quantities or mixed-size requirements, request bulk pricing.
