180° Commercial-Duty Chain Link Gate Hinge Series
This industrial offset hinge series is designed for commercial chain-link swing gates. The offset pivot geometry increases clearance between the gate frame, gate post and fence line, allowing a wider swing than many conventional chain-link gate hinges.
Up to 180° swing range

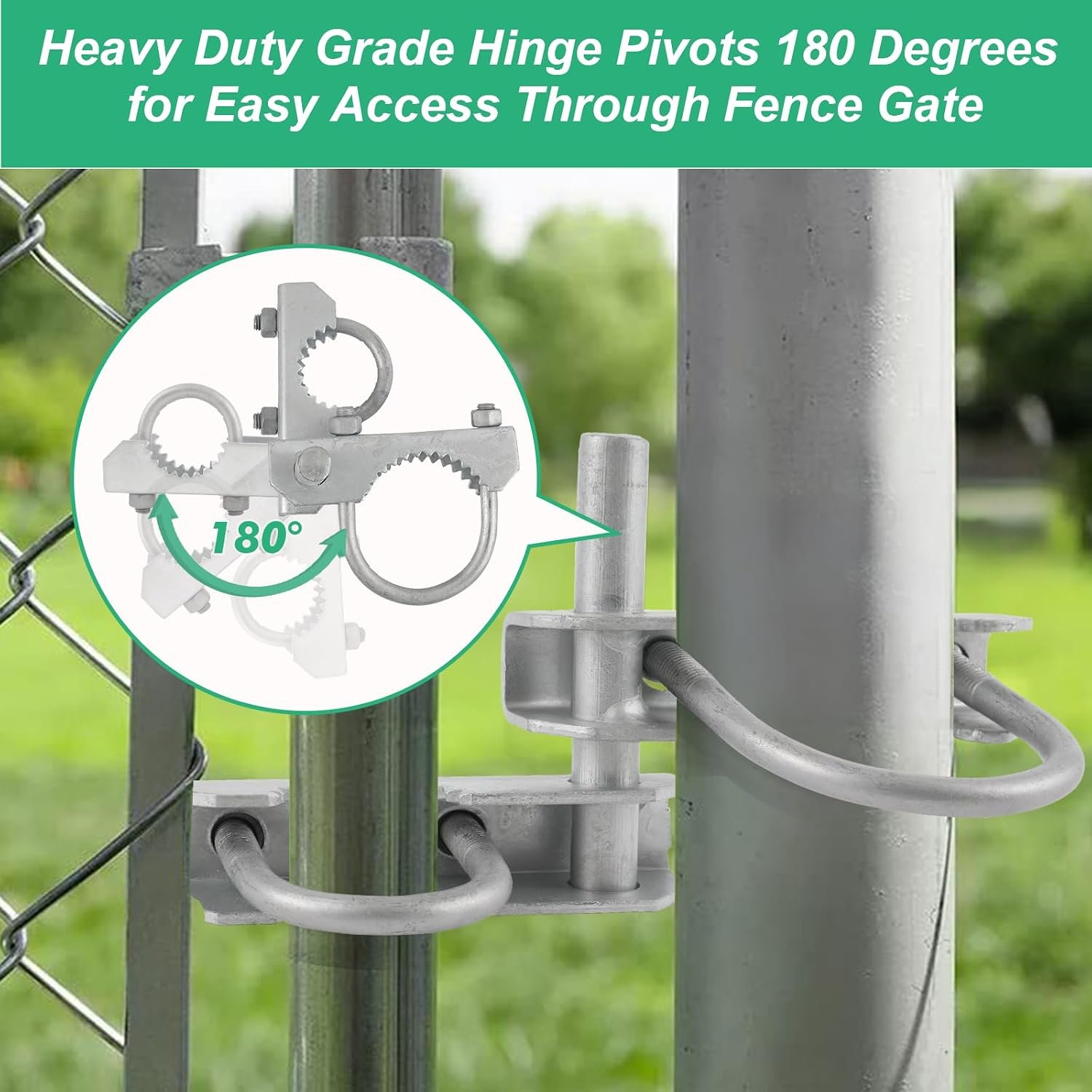

When correctly installed and when the surrounding gate and fence layout provides sufficient clearance, the offset hinge geometry can provide up to a full 180° swing range. Actual opening range depends on post position, gate-frame dimensions, hinge orientation, alignment and nearby obstructions.
Hot-dip galvanized outdoor finish

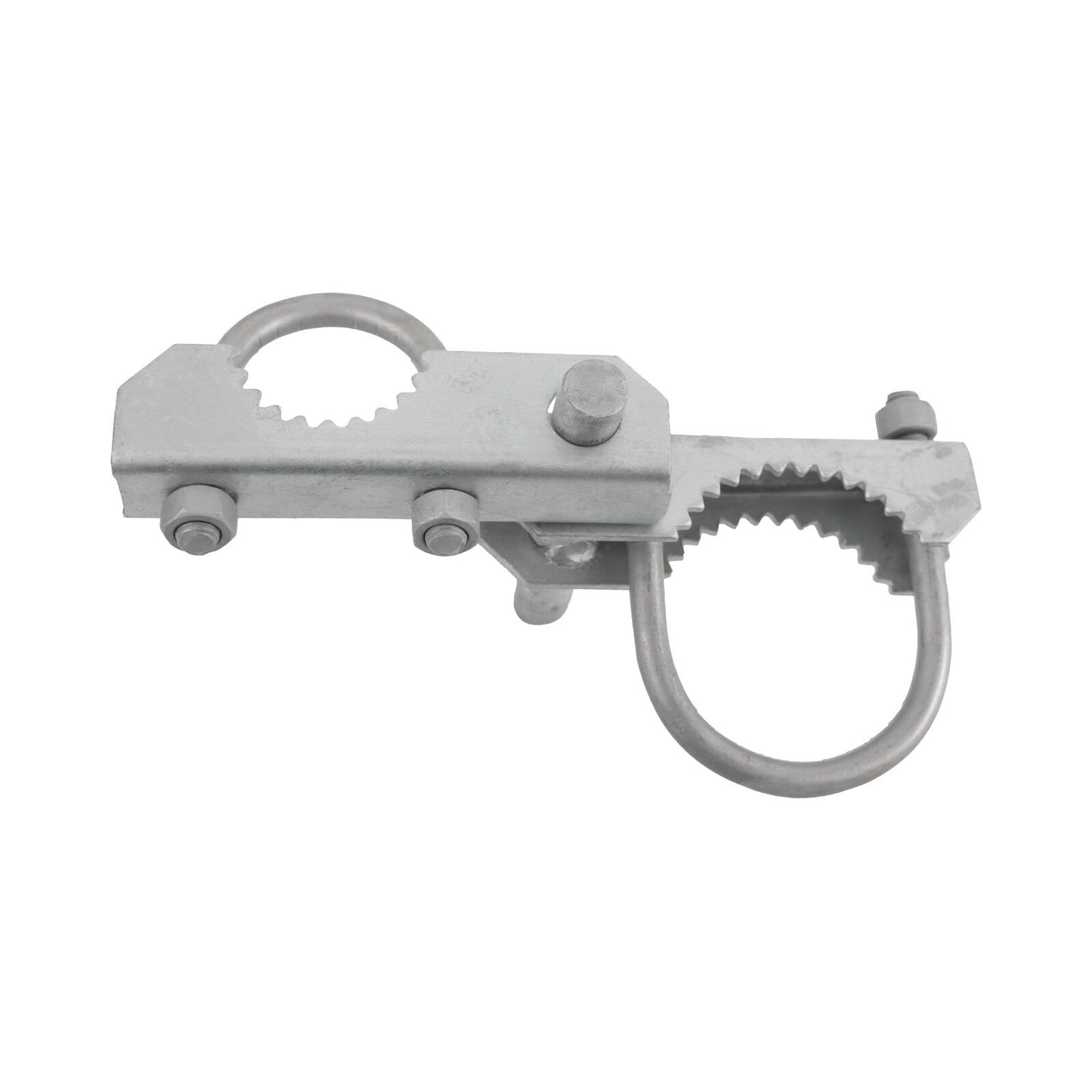

The hinge assembly has a hot-dip galvanized finish for corrosion protection in exposed outdoor installations. Surface texture, zinc buildup and appearance may vary as normal characteristics of the hot-dip galvanizing process.
Clamp-on installation

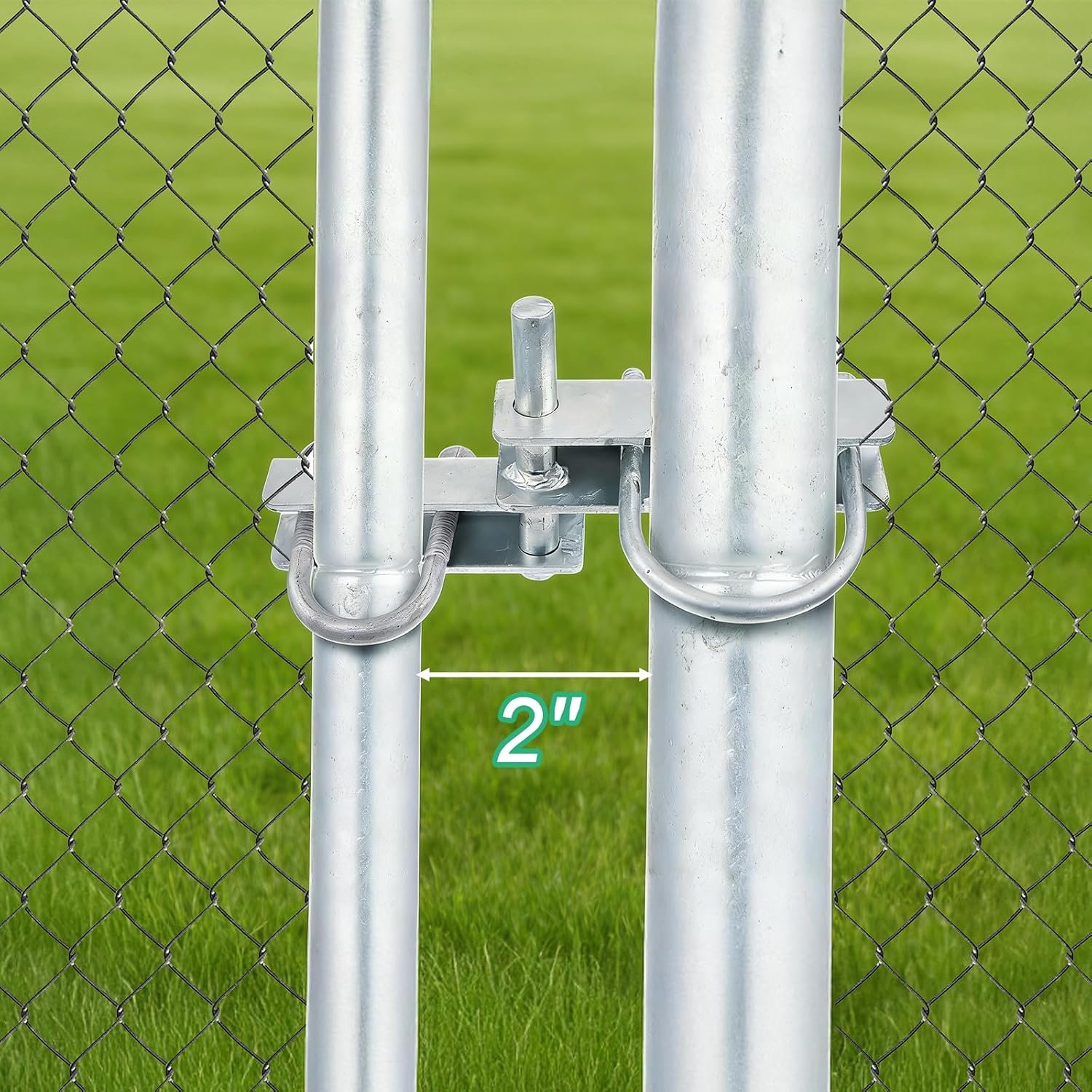

Serrated clamping surfaces help grip the round tubing, while the U-bolt mounting design allows the assembly to be secured to the gate post and gate frame without welding. Correct sizing and alignment are essential for reliable operation.
Complete gate-post size range

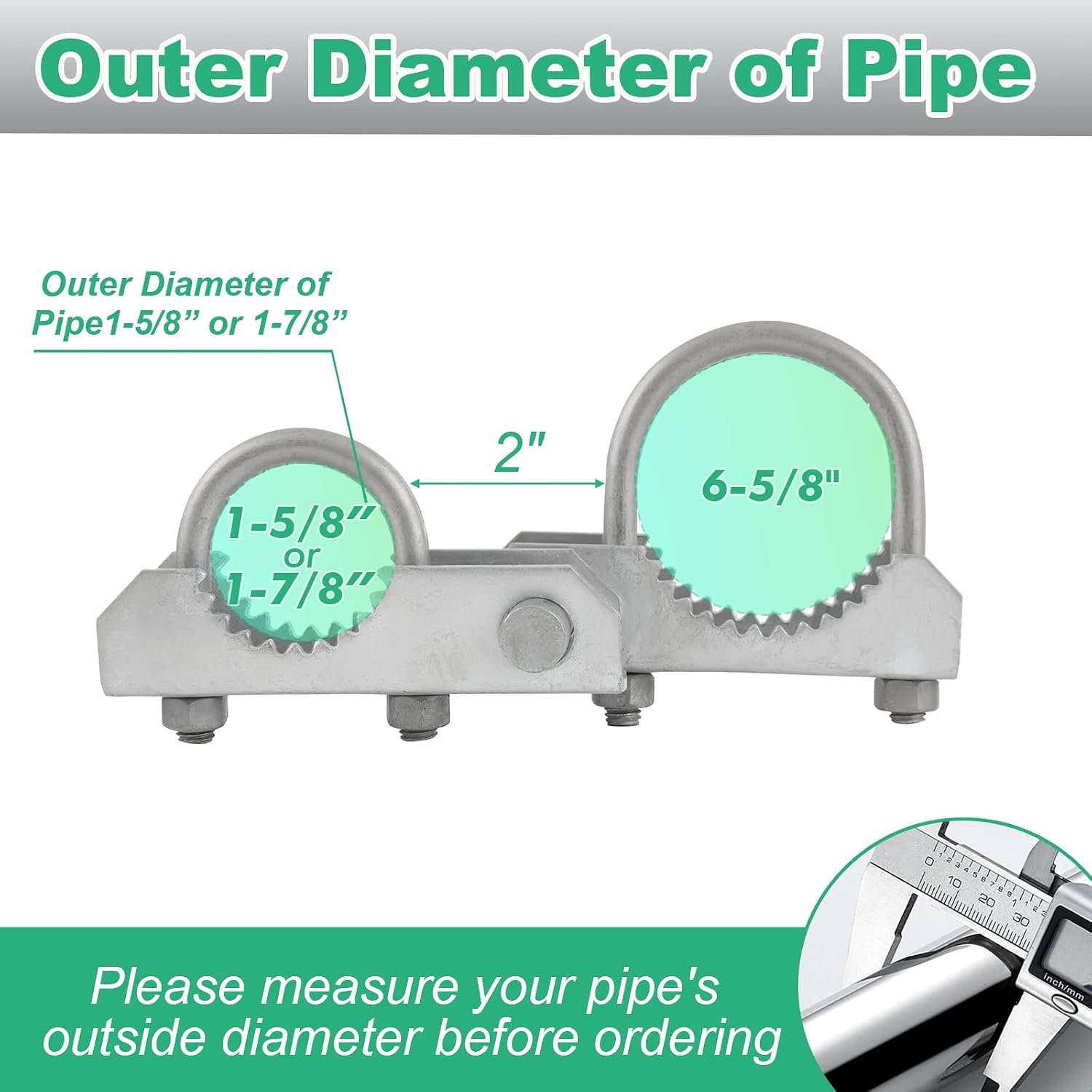

| Gate-post outside diameter | Gate-frame outside diameter | Finish |
|---|---|---|
| 2-3/8″ | 1-5/8″ through 1-7/8″ | Hot-dip galvanized |
| 2-7/8″ | 1-5/8″ through 1-7/8″ | Hot-dip galvanized |
| 3-1/2″ | 1-5/8″ through 1-7/8″ | Hot-dip galvanized |
| 4″ | 1-5/8″ through 1-7/8″ | Hot-dip galvanized |
| 4-1/2″ | 1-5/8″ through 1-7/8″ | Hot-dip galvanized |
| 6-5/8″ | 1-5/8″ through 1-7/8″ | Hot-dip galvanized |
| 8-5/8″ | 1-5/8″ through 1-7/8″ | Hot-dip galvanized |
Before ordering
- Measure the actual outside diameter of the gate post.
- Confirm the gate-frame outside diameter.
- Check the available clearance through the intended swing path.
- Use properly matched upper and lower hinges and align their pivot axes during installation.
- Recheck U-bolt and nut tightness after initial operation.
For small-quantity orders, select the required gate-post size on Amazon. For commercial projects, replacement programs or volume purchasing, request bulk pricing.
