Pressed Steel Chain Link Gate Fork Latch
This bolt-on pressed-steel fork latch is intended for chain-link single swing and walk gates. The mounting collar attaches to the round gate-frame upright, while the fork arm closes around the adjacent stationary latch post to hold the gate shut. A built-in opening allows a padlock to be added when required.
This is the pressed-steel version of the fork latch. For heavier commercial or industrial gate applications, refer to the Wmebee malleable-iron fork latch series.
Technical Specifications & Selection Guide
| Item | Specification |
|---|---|
| Product type | Bolt-on chain-link gate fork latch |
| Material | Pressed steel |
| First dimension | Gate-frame outside diameter |
| Second dimension | Latch-post outside diameter |
| Available combinations | 1-3/8" × 1-7/8"; 1-3/8" × 2-3/8"; 1-5/8" × 2-3/8"; 1-5/8" × 2-7/8" |

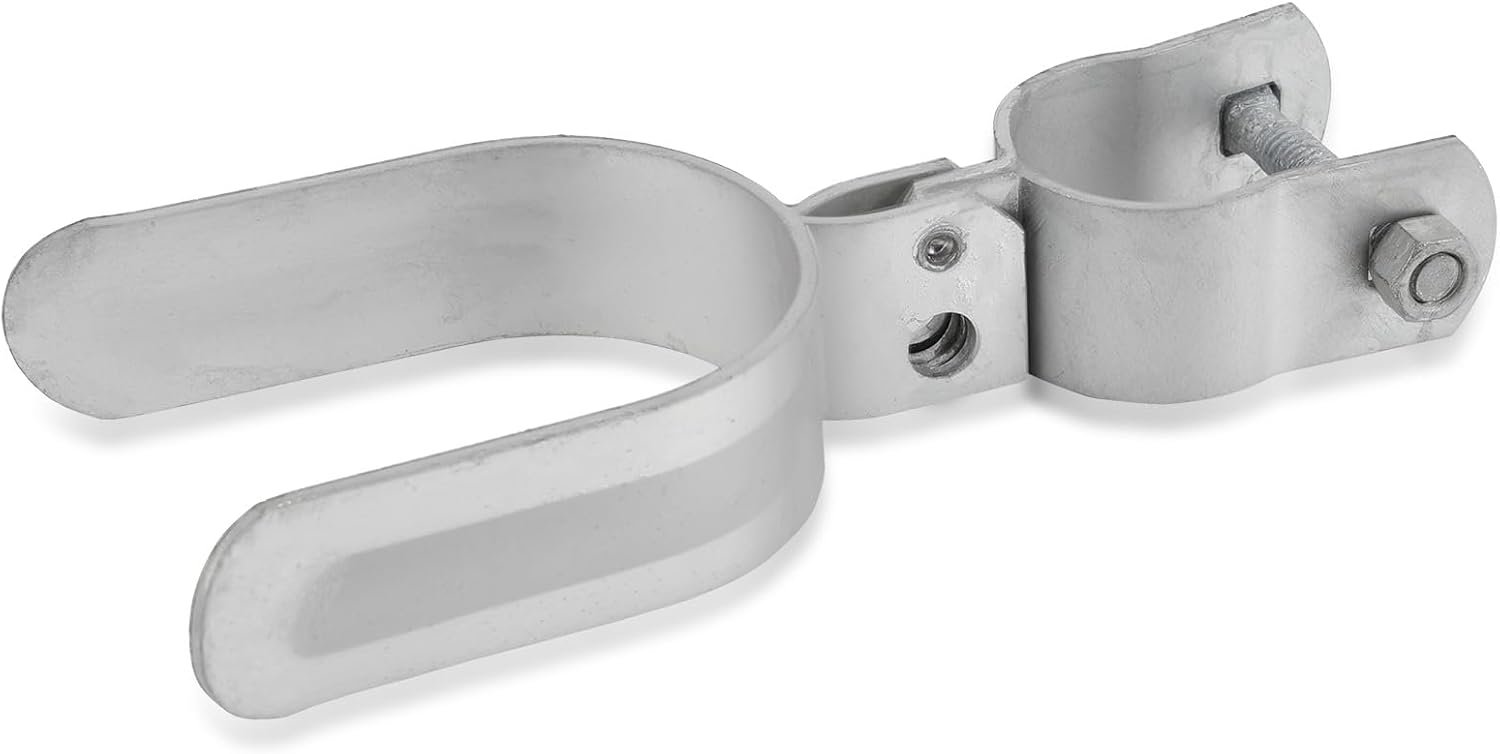

| Silver finish | Hot-dip galvanized |

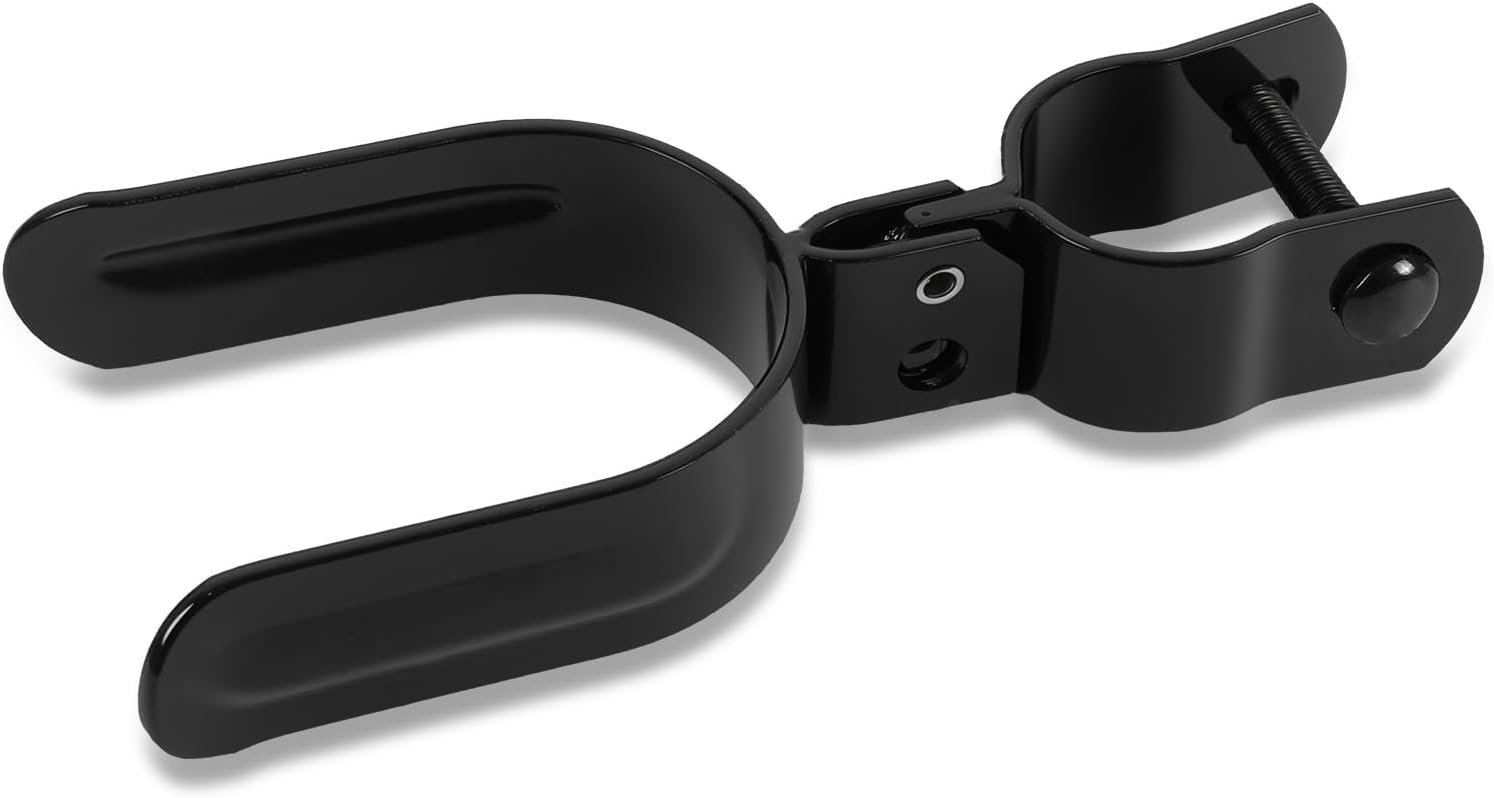

| Black finish | Zinc-plated base with a UV-resistant black powder-coated finish |

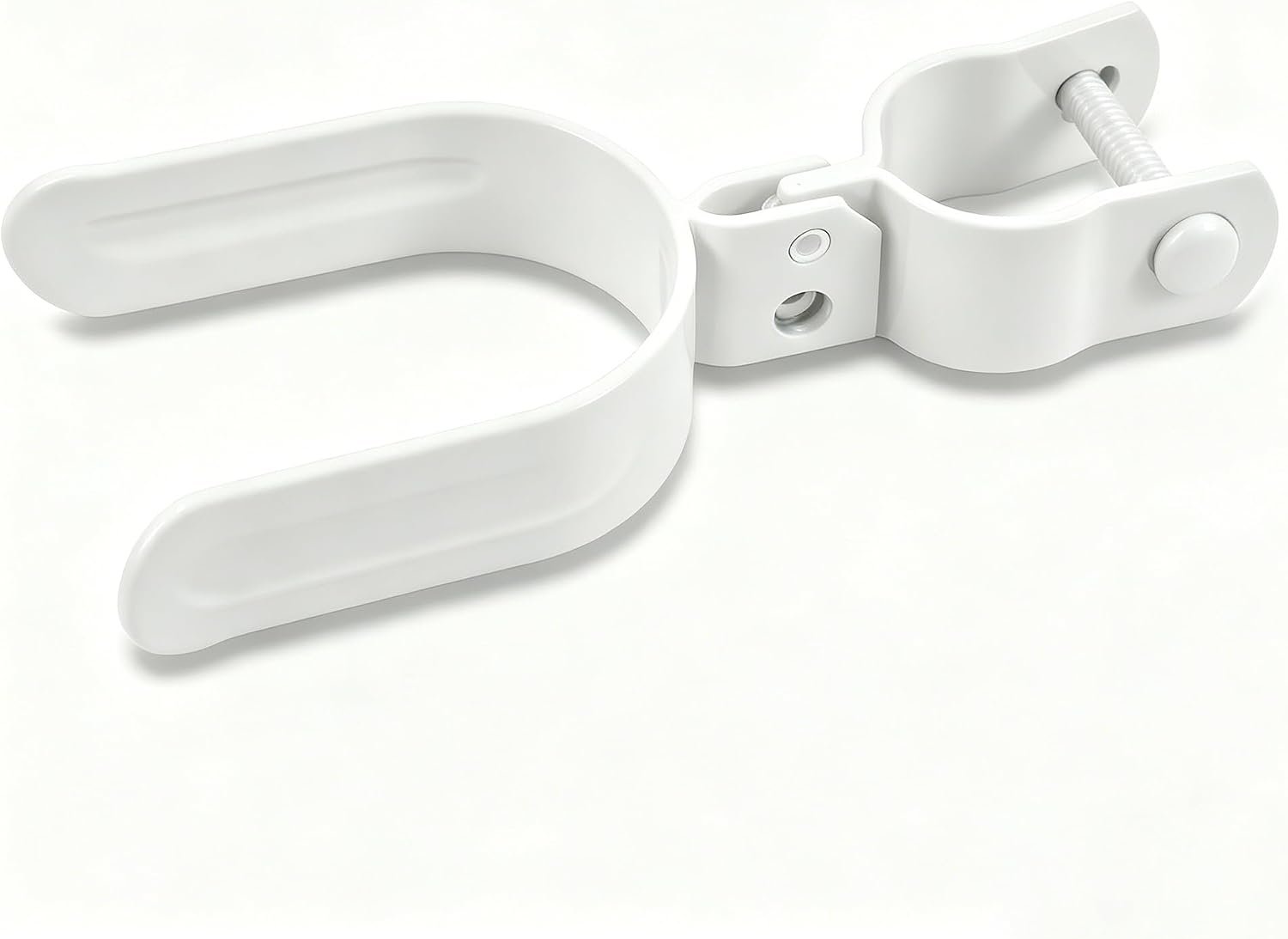

| White finish | Zinc-plated base with a UV-resistant white powder-coated finish |

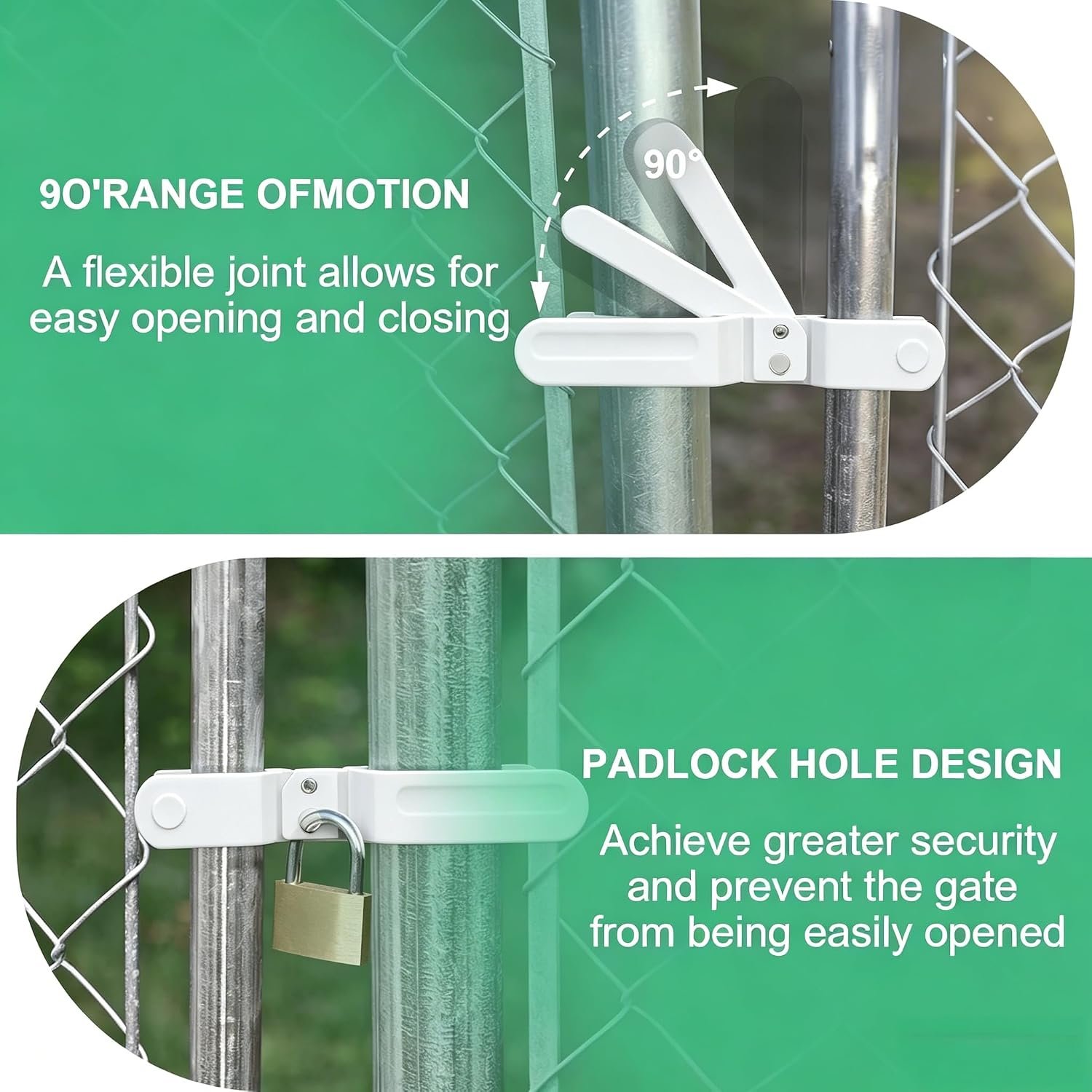

| Operation | Manual fork arm; approximately 90° movement for opening and closing |
| Security provision | Built-in padlock opening |
| Installation | Bolt-on mounting to round gate-frame tubing |
How to Select the Correct Size

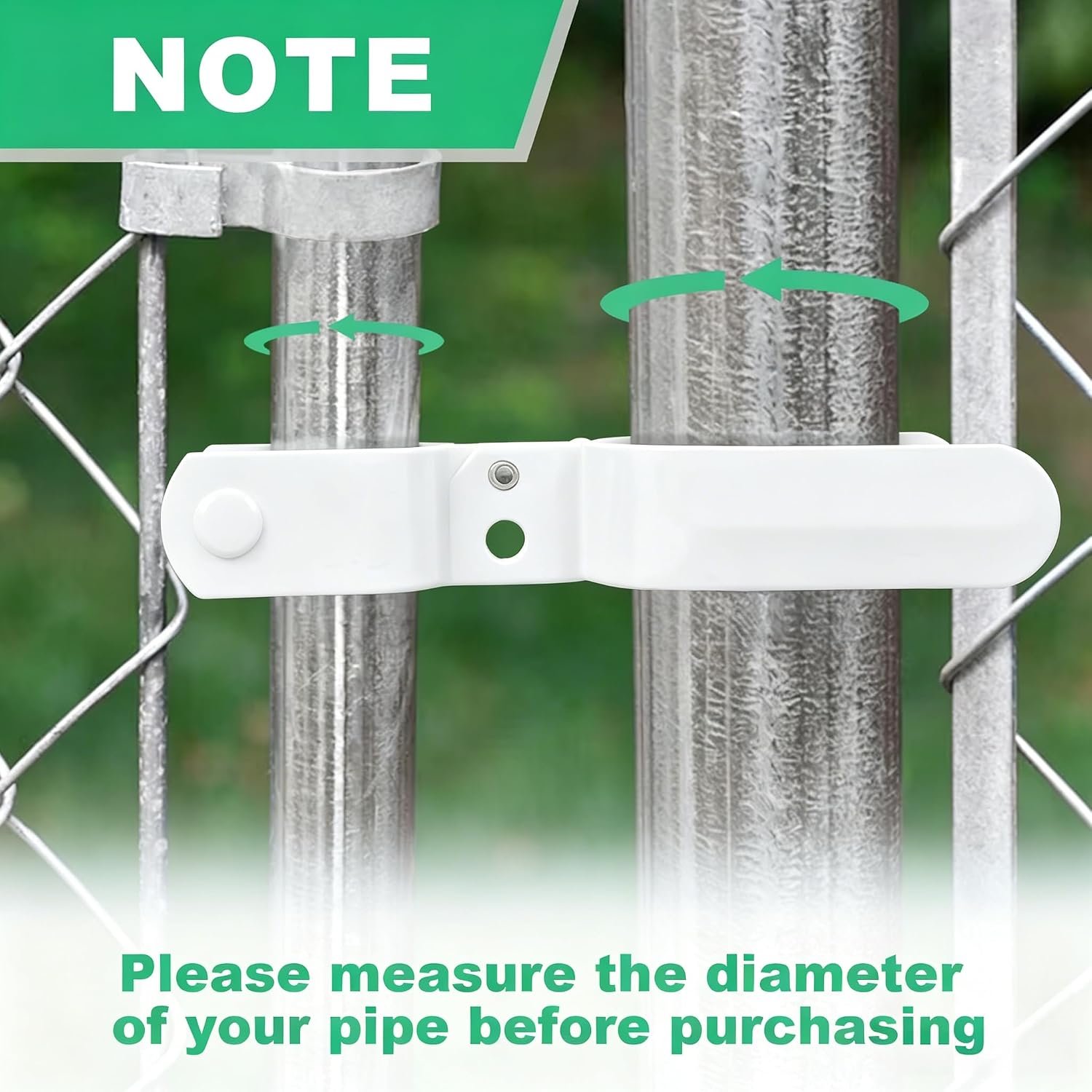

- Measure the outside diameter of the gate-frame upright where the latch will be mounted.
- Measure the outside diameter of the stationary latch post that the fork will close around.
- Select the size in Gate Frame OD × Latch Post OD order.
- Check the spacing between the gate frame and latch post before ordering; the fork must close fully and align with the padlock opening.

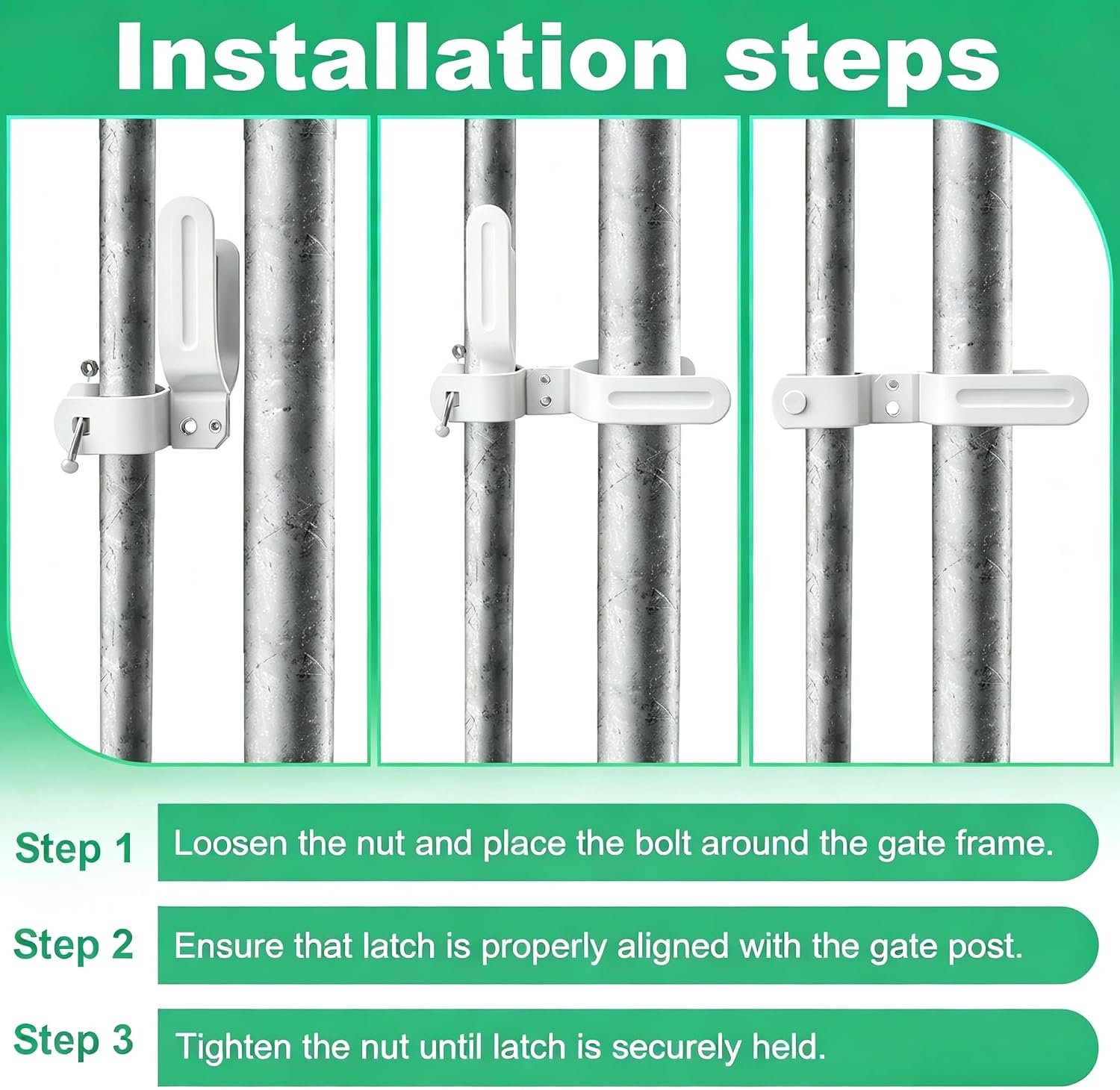

Installation Notes
- Position the latch on the gate-frame upright and secure the bolt-on mounting collar.
- With the gate closed, align the fork arm with the stationary latch post.
- Tighten the mounting hardware and verify that the fork opens and closes without binding.
- Confirm padlock alignment and recheck fastener tightness after initial use.
Ordering notice: on Amazon, select the required finish and the correct gate-frame × latch-post size before ordering. For mixed specifications or project quantities, request bulk pricing.
