Residential Chain Link Gate Fork Latch Series

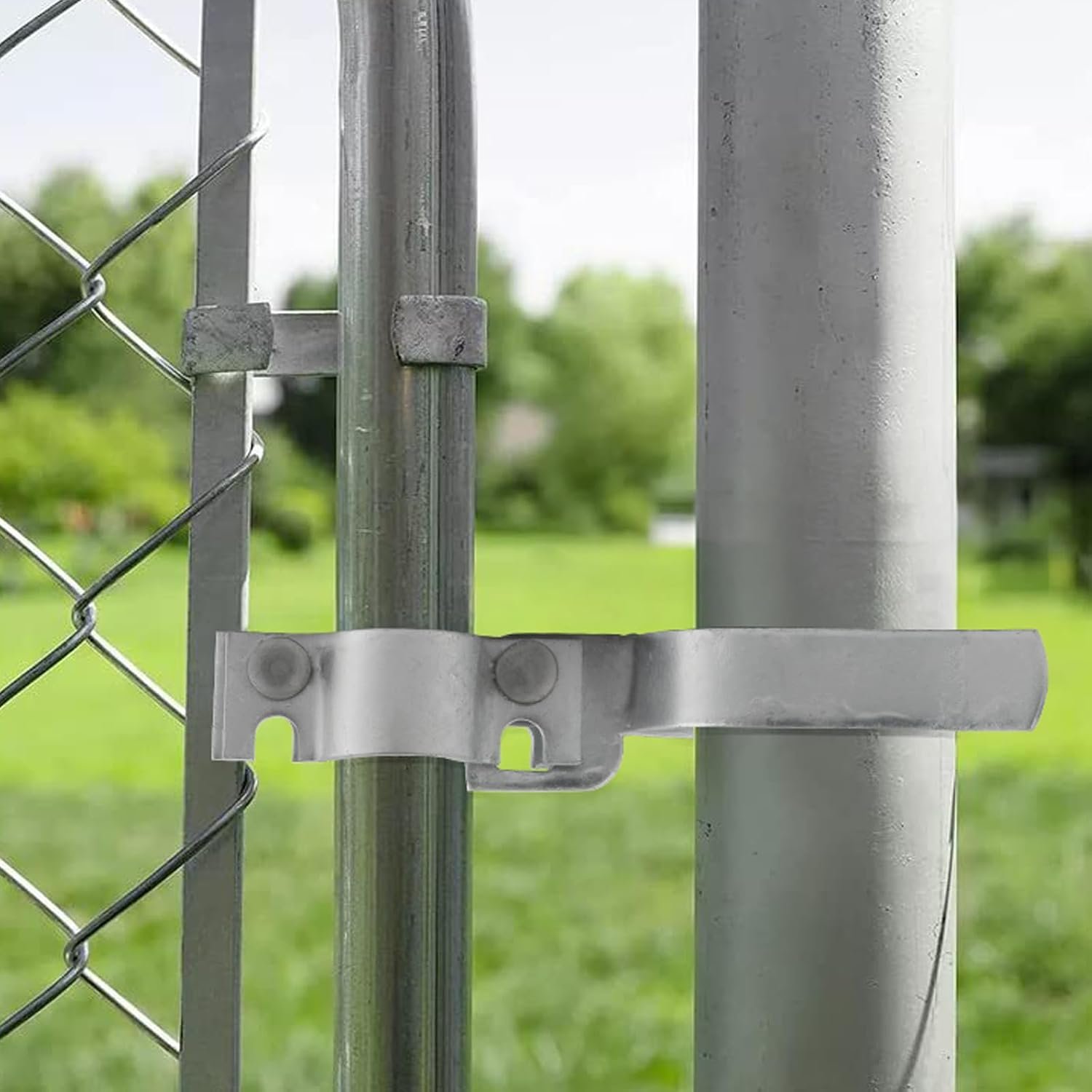

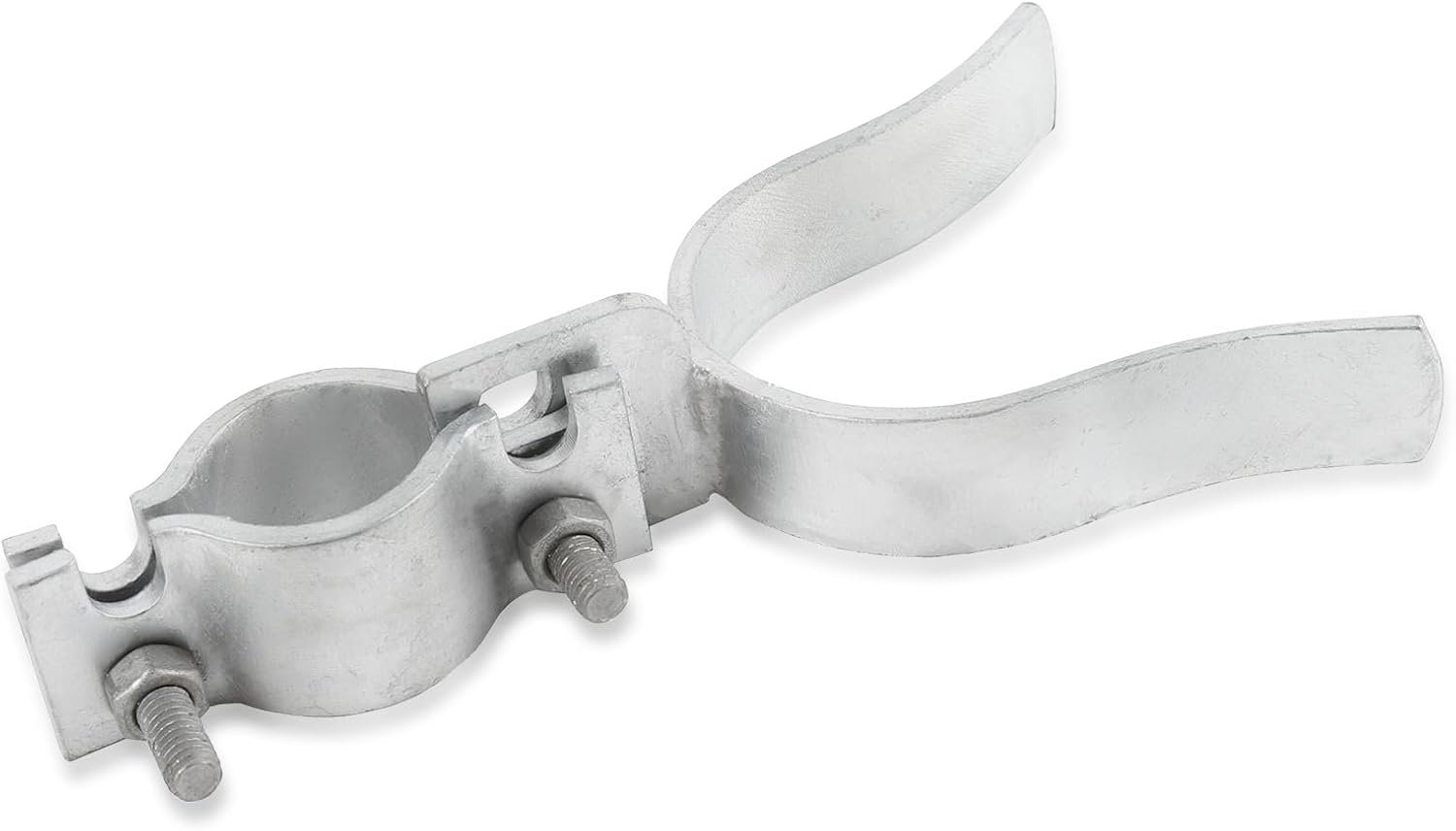

This steel fork latch is designed for residential and light-duty chain-link swing gates. It clamps to the upright gate frame and closes around the adjacent latch post. The two-sided fork-latch arrangement allows the latch to be lifted from either side of the gate, while the built-in padlock hole provides an option for securing the closed gate.
The fork arm pivots through approximately 90° for release and closure. Correct sizing, alignment and spacing between the gate frame and latch post are essential for proper operation.
Technical Specifications & Selection Guide
| Item | Specification |
|---|---|
| Product type | Residential / light-duty chain-link gate fork latch |
| First dimension | Gate-frame outside diameter |
| Second dimension | Latch-post outside diameter |

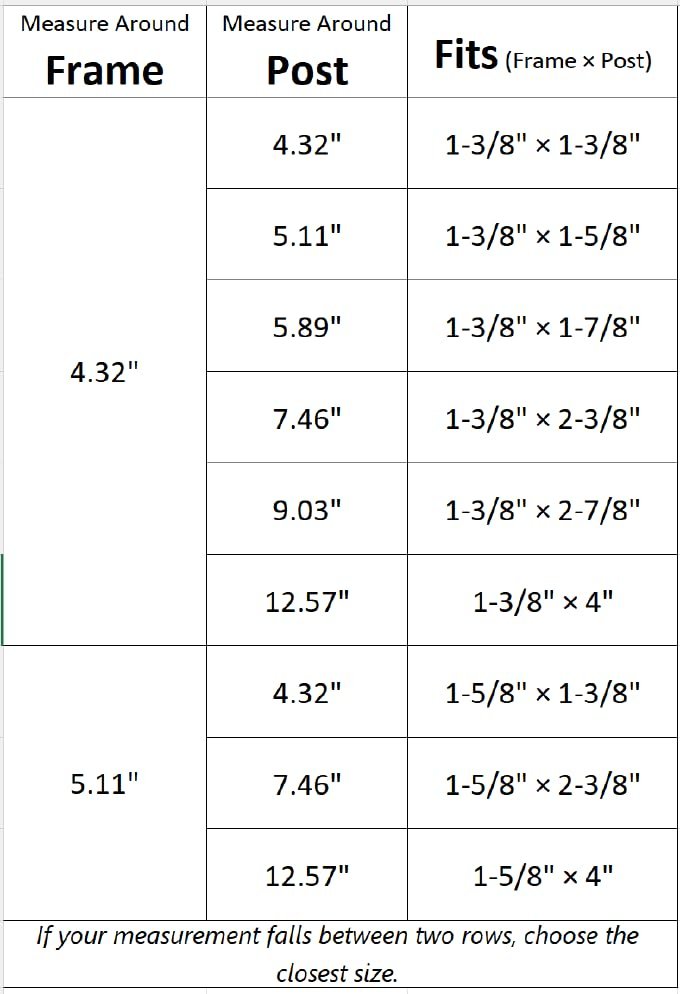

| Available combinations | 1-3/8″ × 1-3/8″; 1-3/8″ × 1-5/8″; 1-3/8″ × 1-7/8″; 1-3/8″ × 2-3/8″; 1-3/8″ × 2-7/8″; 1-3/8″ × 4″; 1-5/8″ × 1-3/8″; 1-5/8″ × 2-3/8″; 1-5/8″ × 4″ |
| Material | Steel |
| Silver finish | Hot-dip galvanized |
| Black finish | Zinc-plated base with a UV-resistant black powder-coated finish |
| White finish | Zinc-plated base with a UV-resistant white powder-coated finish |
| Operation | Two-sided manual fork latch; approximately 90° fork-arm movement |
| Security provision | Built-in padlock hole |
| Installation | Clamp-on mounting to round gate-frame tubing |

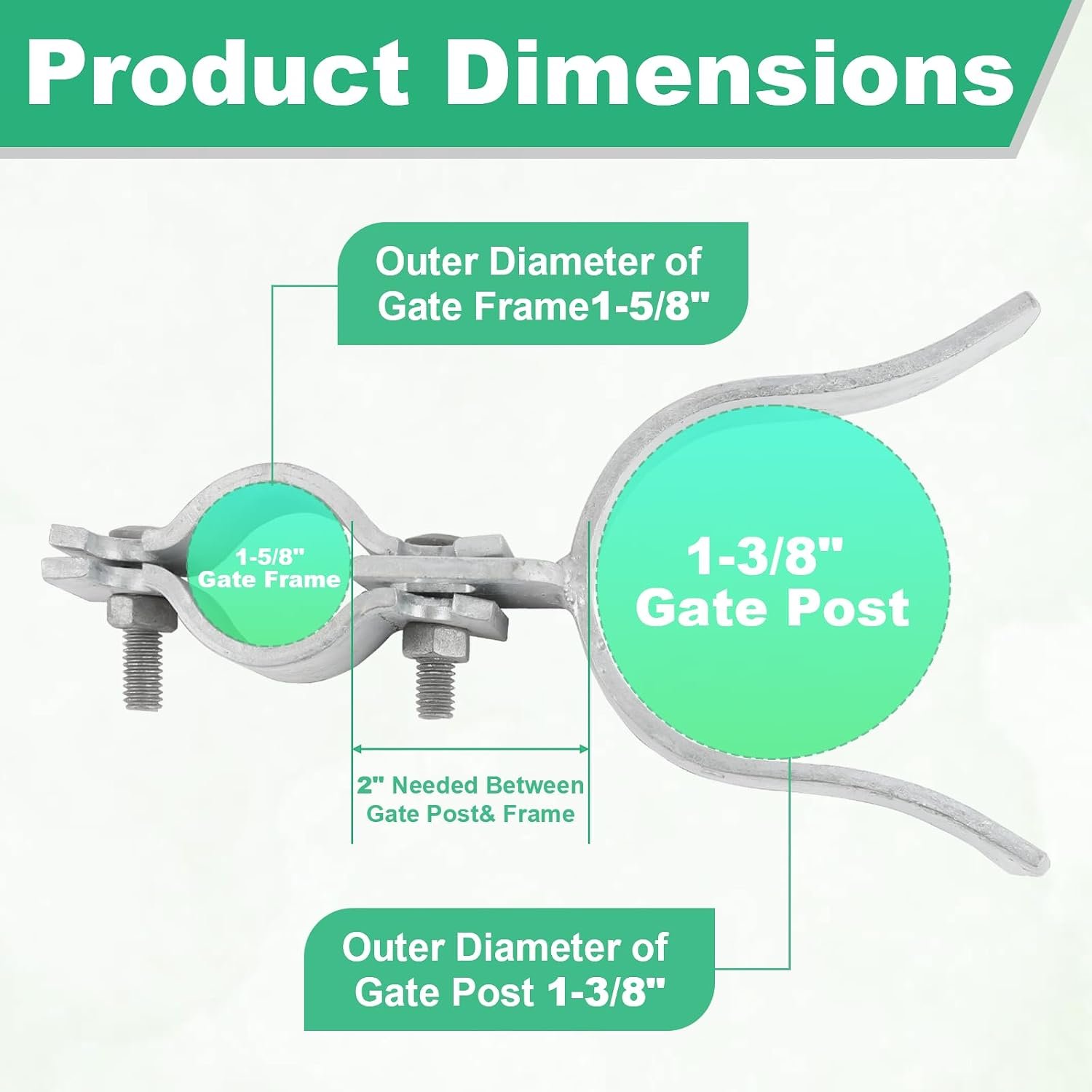

How to Select the Correct Size

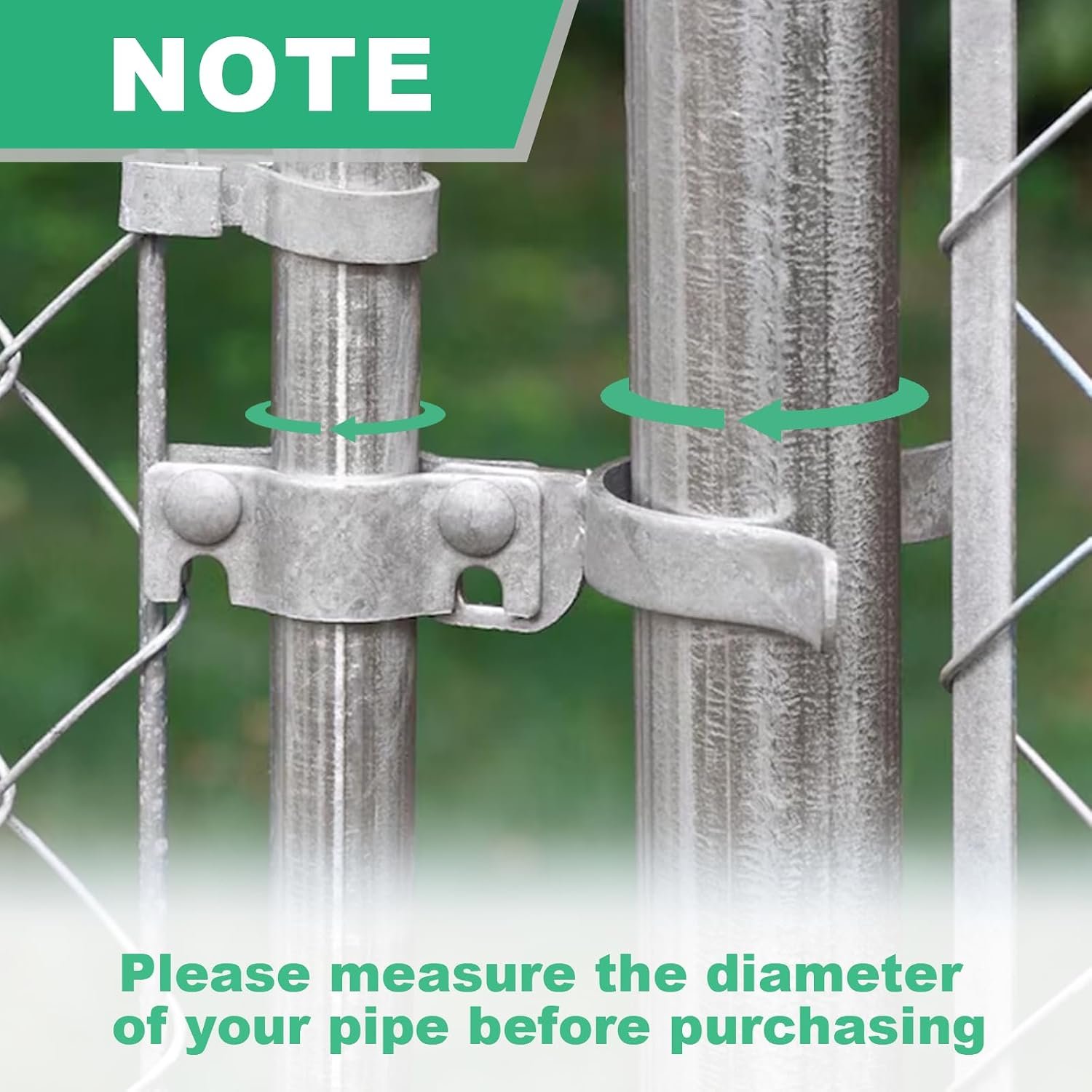

- Measure the outside diameter of the gate-frame upright where the latch body will clamp.
- Measure the outside diameter of the stationary latch post that the fork will close around.
- Select the size in Gate Frame OD × Latch Post OD order.
- Confirm the spacing between the gate frame and latch post allows the fork to close fully and align with the padlock opening.

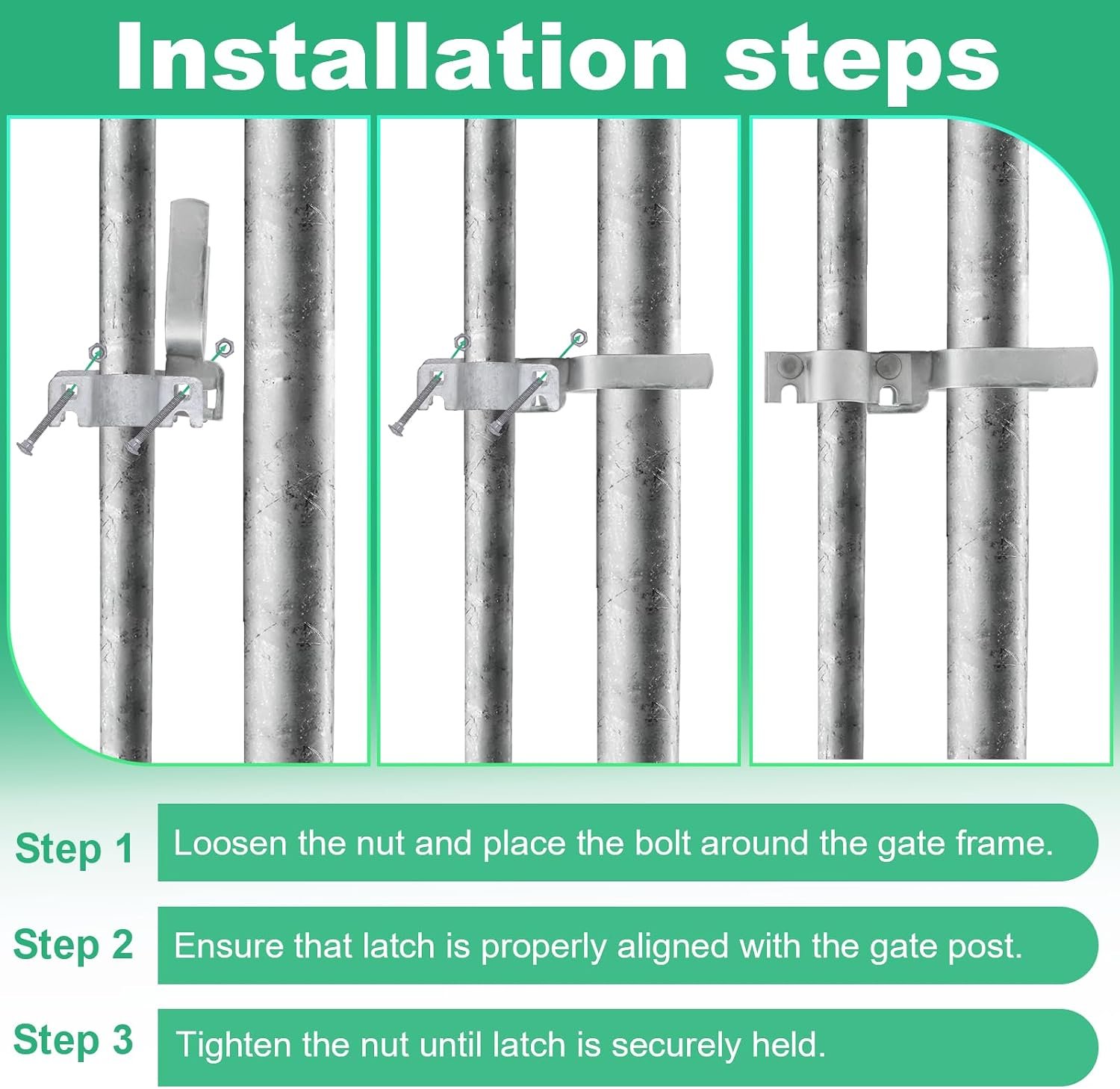

Installation Notes
- Loosen the mounting hardware and position the clamp around the gate-frame upright.
- Align the fork with the latch post while the gate is in its normal closed position.
- Tighten the fasteners evenly and verify that the fork opens, closes and accepts a padlock without binding.
- Recheck fastener tightness after initial use.
Ordering notice: on Amazon, select the required color and the correct gate-frame × latch-post size before ordering. For mixed specifications or project quantities, request bulk pricing.
