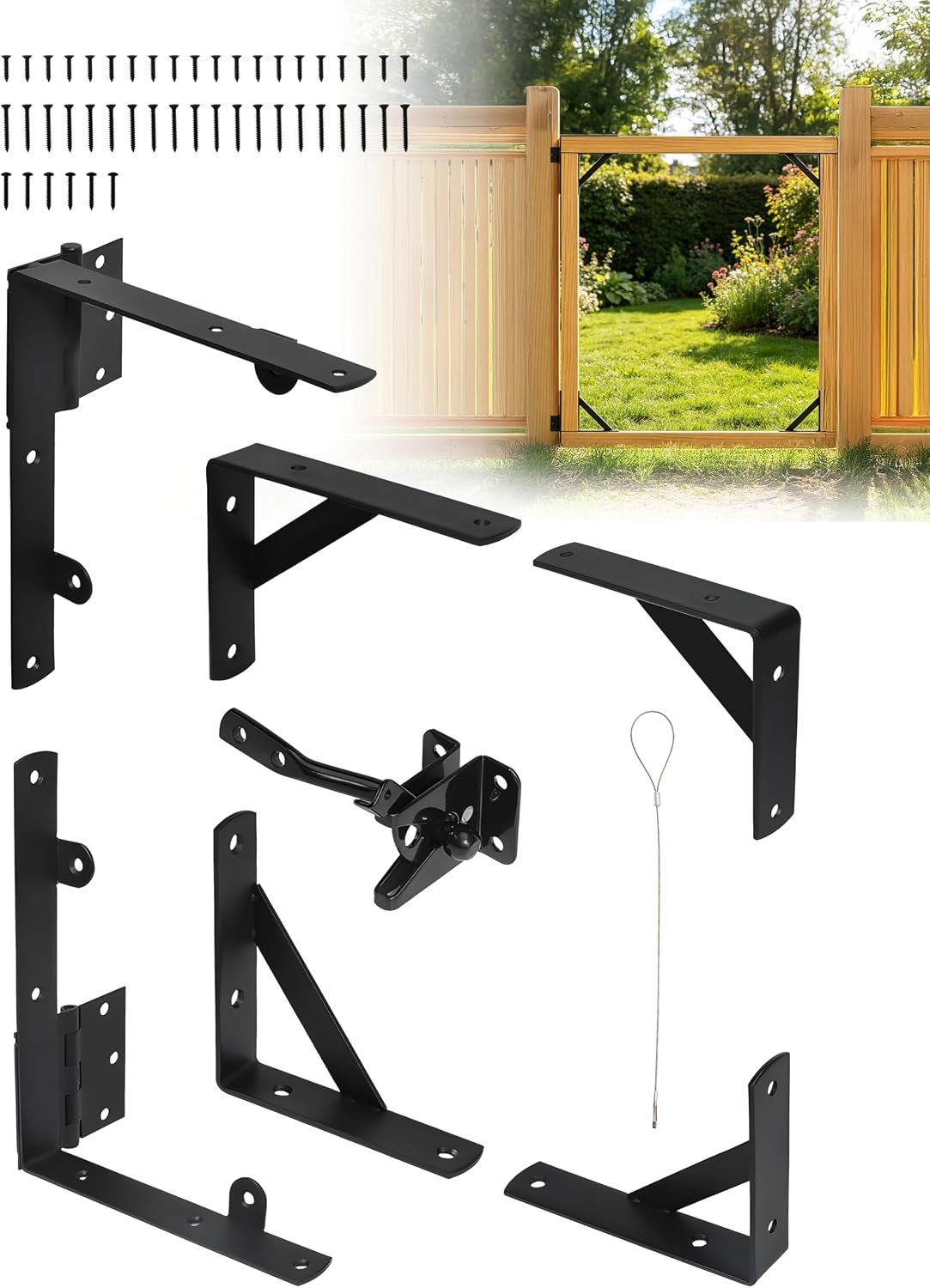

Anti-Sag Wooden Gate Hardware Kit

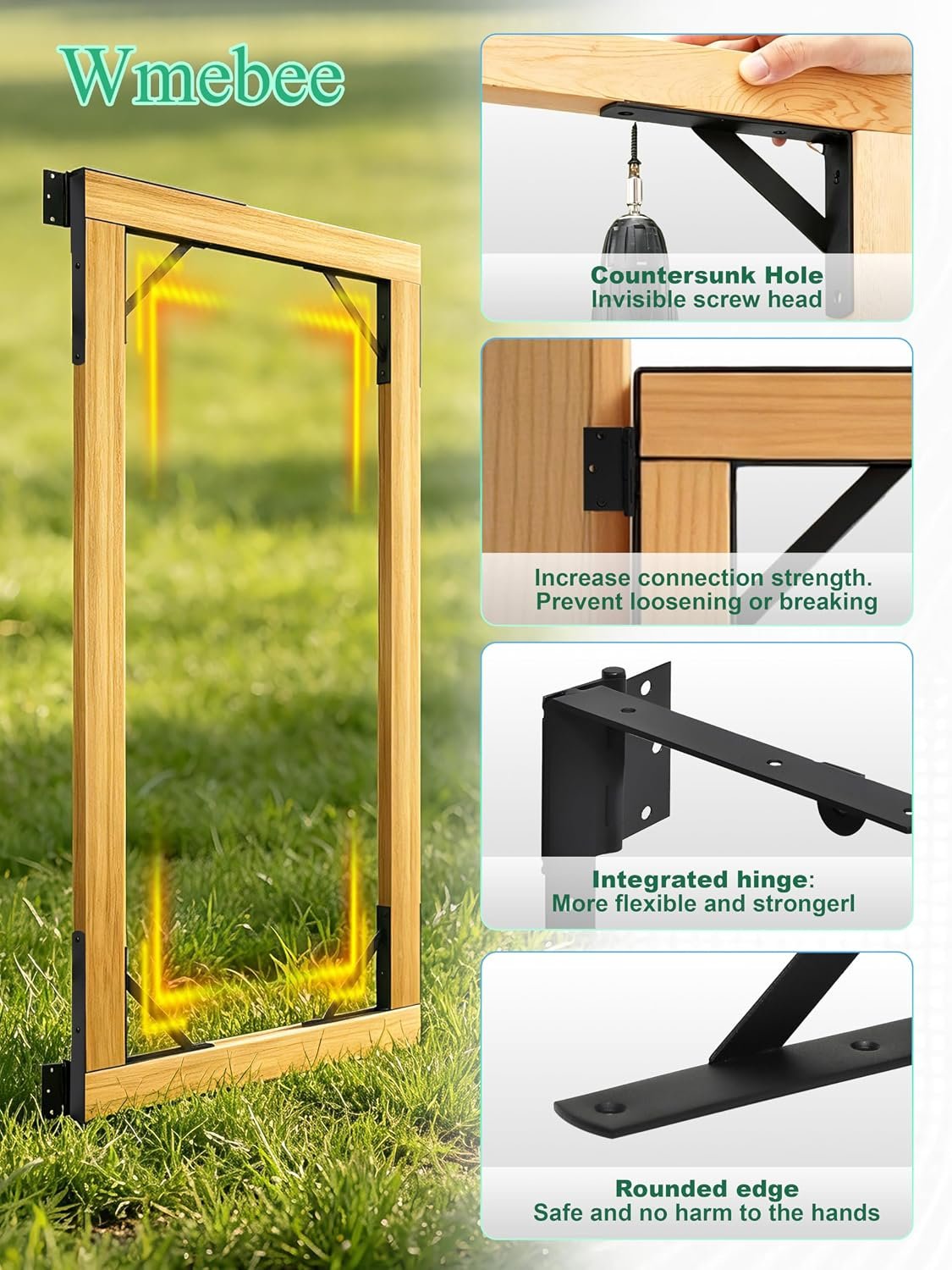

This complete steel hardware kit combines integrated hinge brackets, reinforced corner braces and a self-locking latch for wooden fence gates. The rigid corner-brace layout helps establish a square gate frame and reduce the sagging and twisting that can develop in unsupported wooden gates.
The kit can be used when building a new gate or reinforcing a compatible existing wooden gate. The actual performance depends on gate dimensions, lumber condition, post strength, fastener engagement, assembly accuracy and installation quality.
Technical Specifications
| Item | Specification |
|---|---|
| Product type | Anti-sag wooden gate frame hardware kit |
| Primary function | Builds or reinforces a square wooden gate frame and helps resist sagging and twisting |
| Bracket material | Steel |
| Finish | Black powder-coated finish |
| Mounting configuration | Corner-mounted brackets with integrated hinge brackets |
| Latch type | Self-locking gate latch with release bar and pull ring with wire |
| Safe working load | Up to 120 lb when properly installed on a suitable structure |

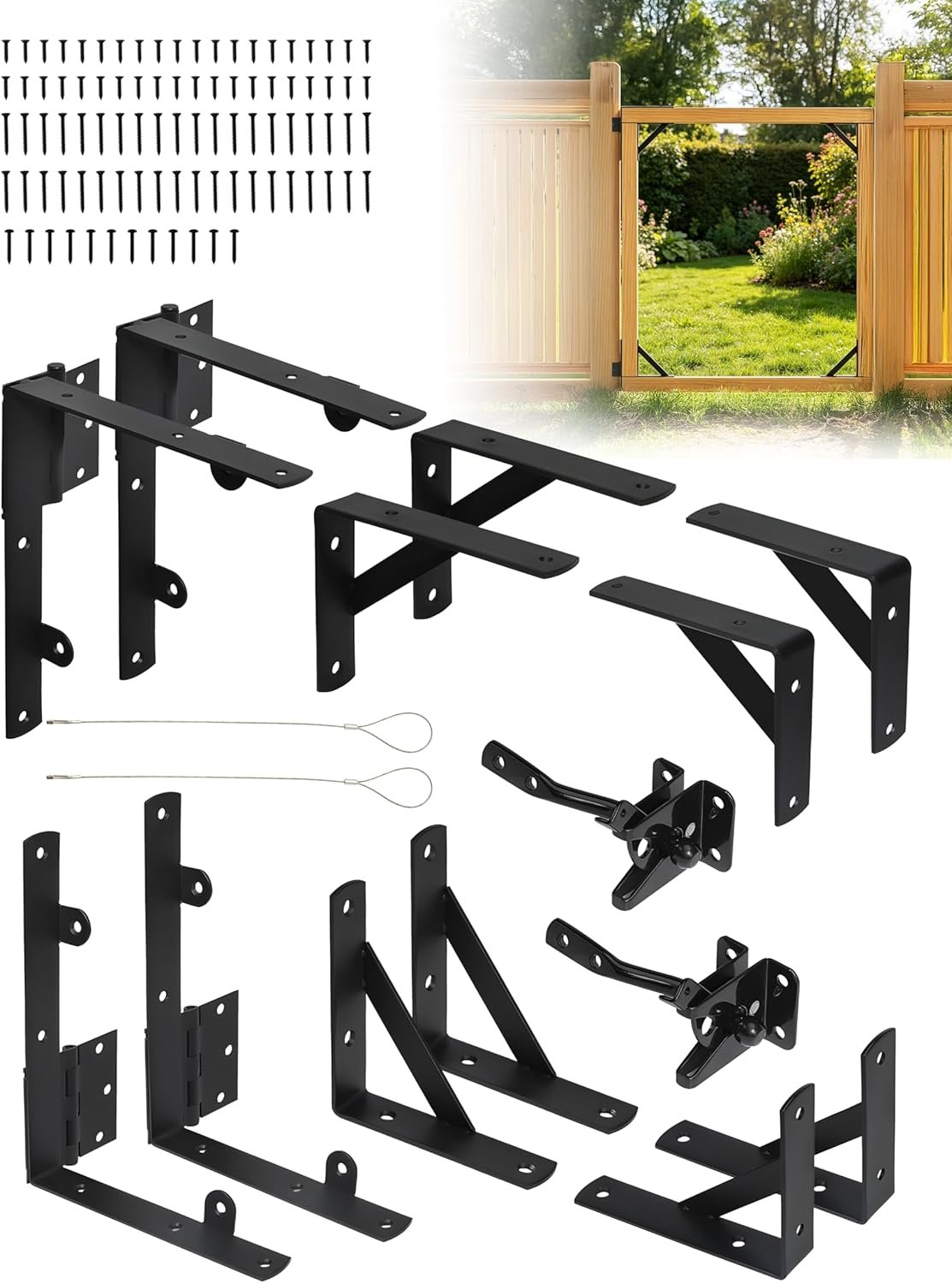

| Set options | 1 Door Set or 2 Door Set |

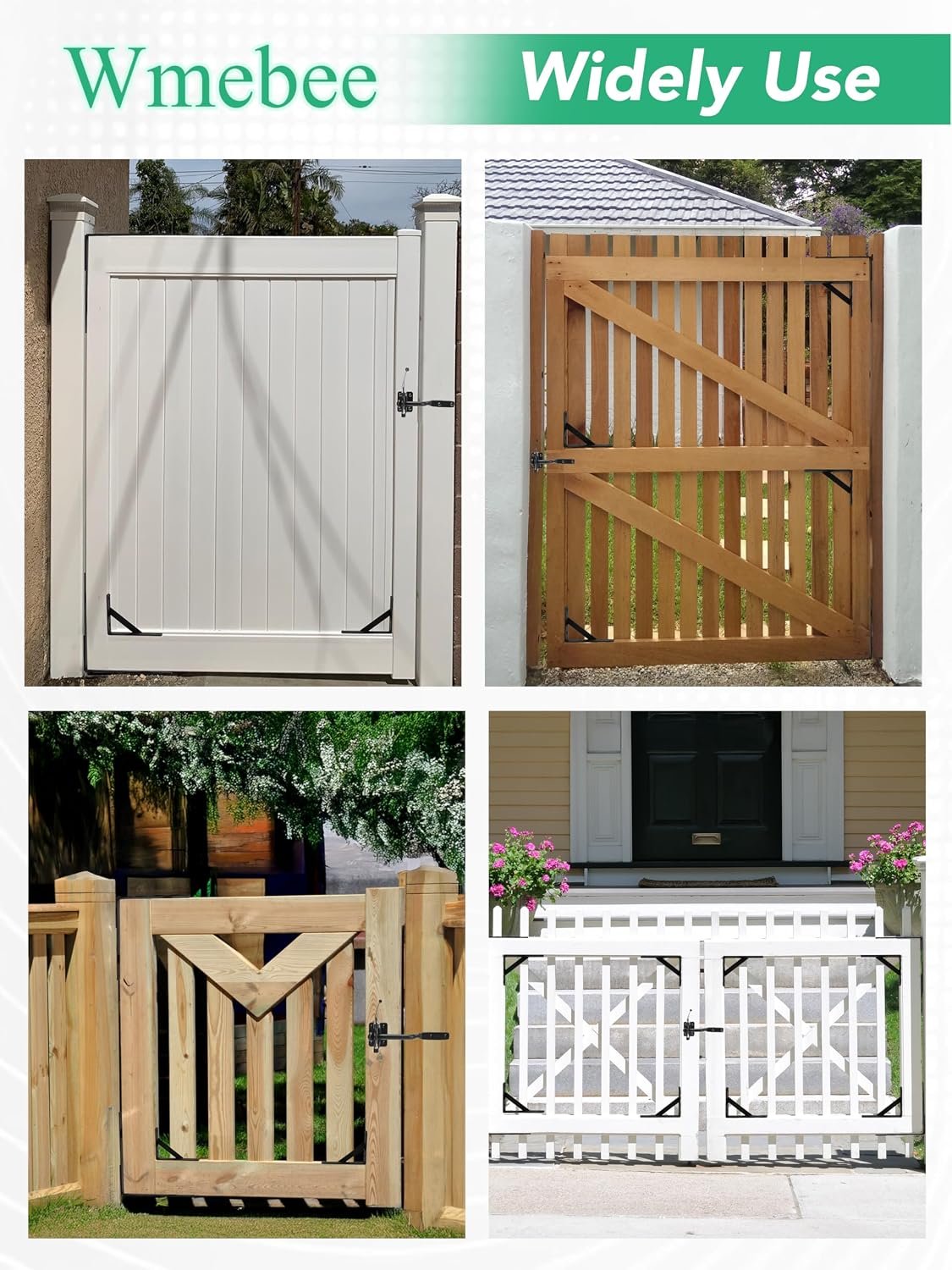

| Intended application | Wooden fence gates and other compatible wood-framed outdoor gates |

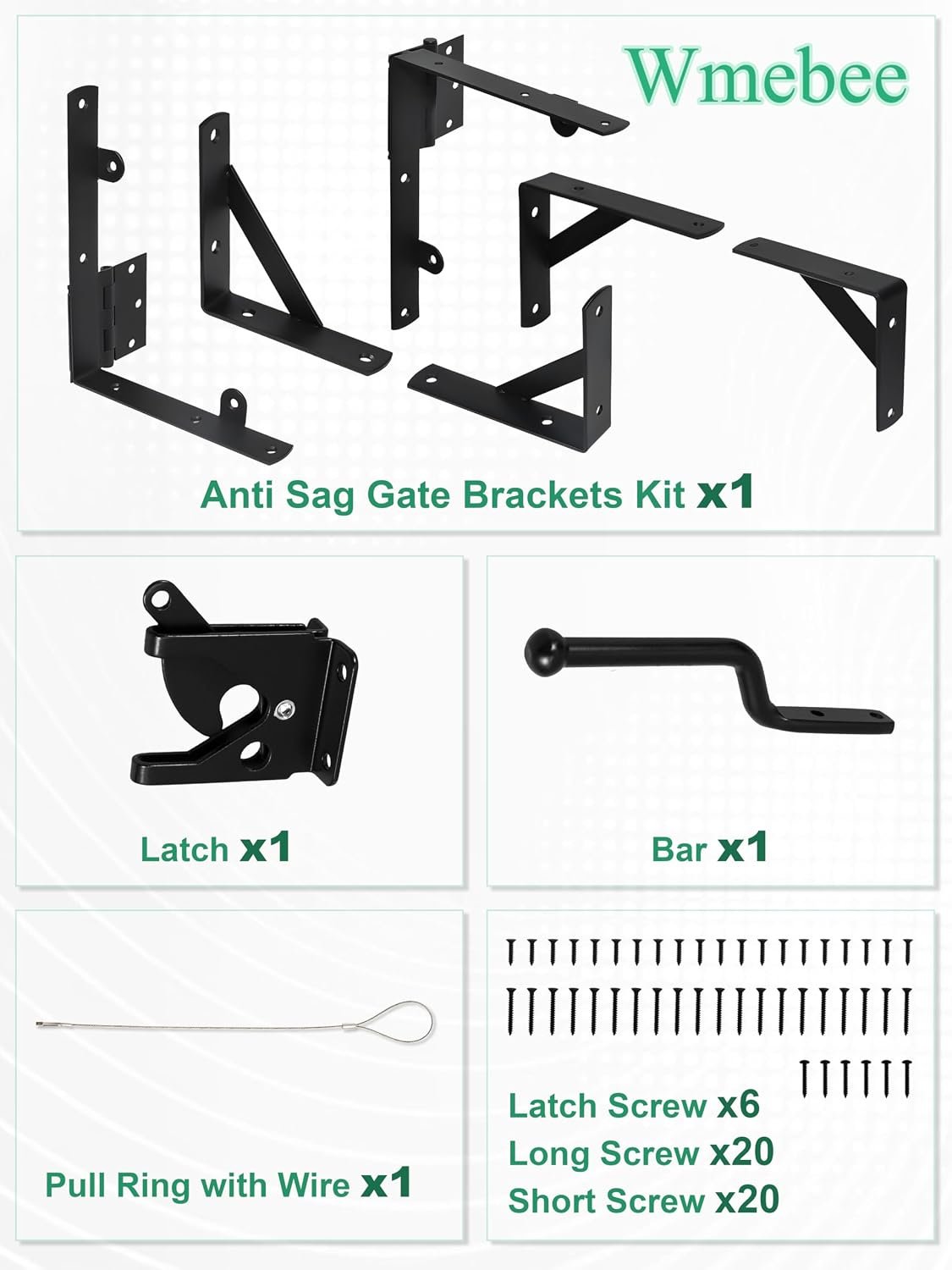

Package Contents

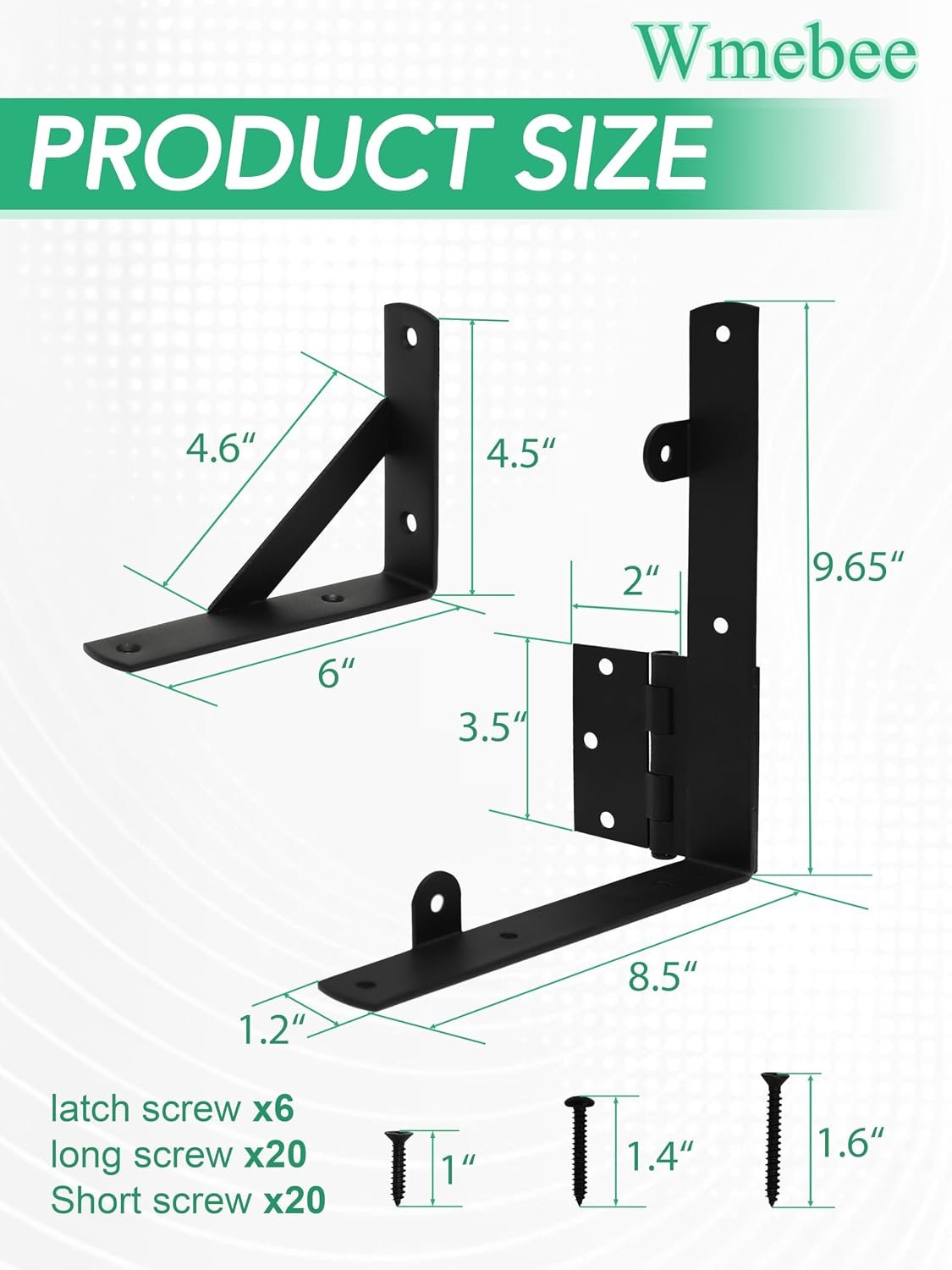

| Component | 1 Door Set | 2 Door Set |
|---|---|---|
| Integrated hinge brackets | 2 | 4 |
| Corner-brace brackets | 4 | 8 |
| Self-locking gate latch | 1 | 2 |
| Latch release bar | 1 | 2 |
| Pull ring with wire | 1 | 2 |
| Short mounting screws, 1 in. | 20 | 40 |
| Long mounting screws, 1.6 in. | 20 | 40 |
| Latch screws, 1.4 in. | 6 | 12 |

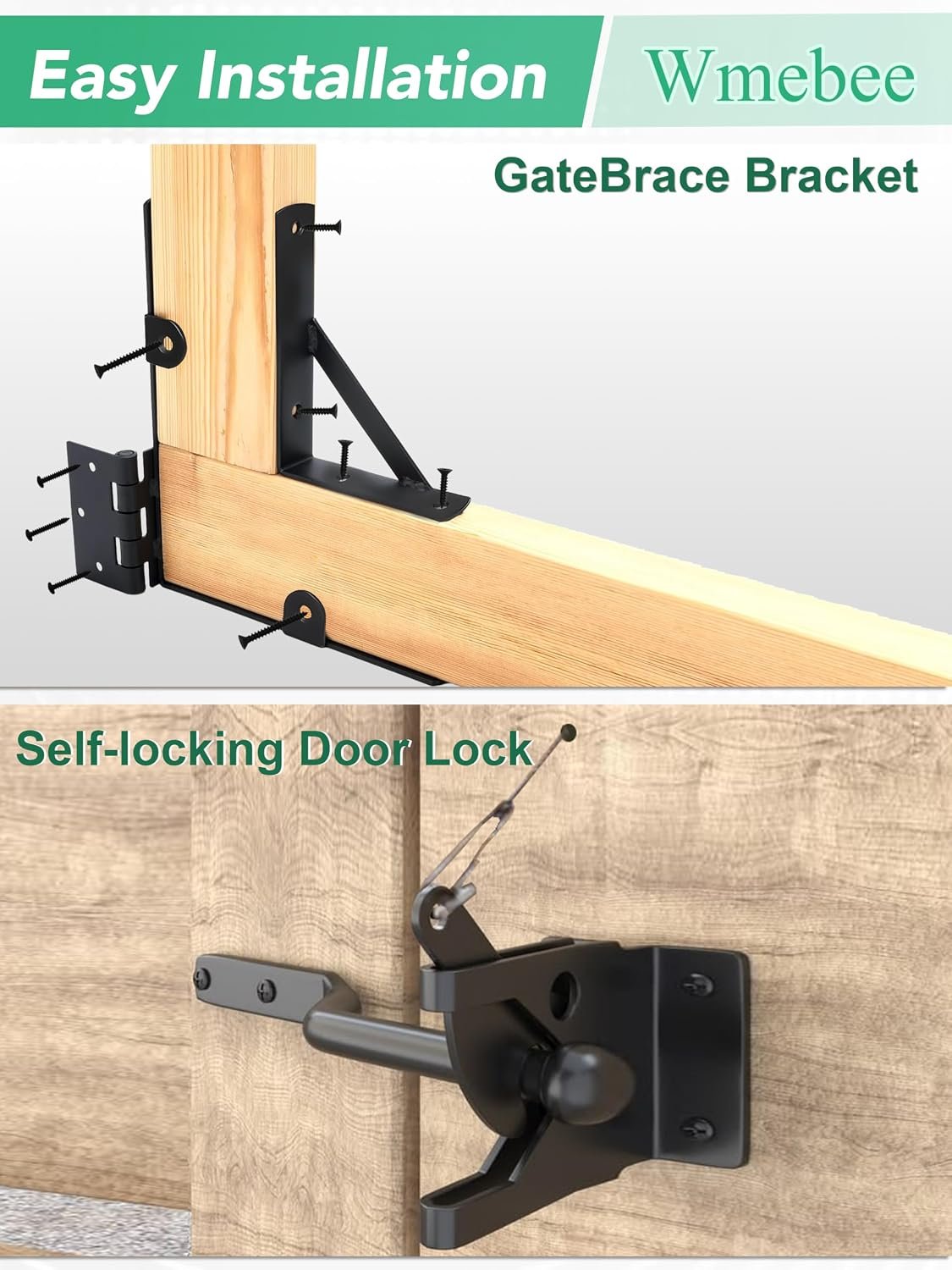

Planning & Installation Notes
- Confirm the gate opening, frame layout, swing direction and post condition before assembly.
- Build and fasten the wooden frame on a flat surface so the frame remains square during installation.
- Use all specified fasteners and ensure that each screw engages sound lumber.
- Mount the hinge side to a structurally suitable post capable of supporting the completed gate.
- The 120 lb rating is not a substitute for evaluating the gate width, frame design, lumber condition, wind exposure and post foundation.
- Inspect and retighten hardware after initial use and periodically as part of normal gate maintenance.
Ordering notice: select 1 Door Set or 2 Door Set on Amazon before ordering. For multiple gates or project quantities, request bulk pricing.
