Chain Link Fence Brace Bands – Hot-dip galvanized
Wmebee brace bands are designed to mount rail end cups and other compatible chain-link fence fittings to terminal posts, including end, corner and gate posts. Their shorter paired tabs are intended for fitting connections.
Brace band and tension band are not interchangeable: a brace band supports rail-end and accessory connections; a tension band has longer tabs and secures a tension bar with stretched chain-link fabric.

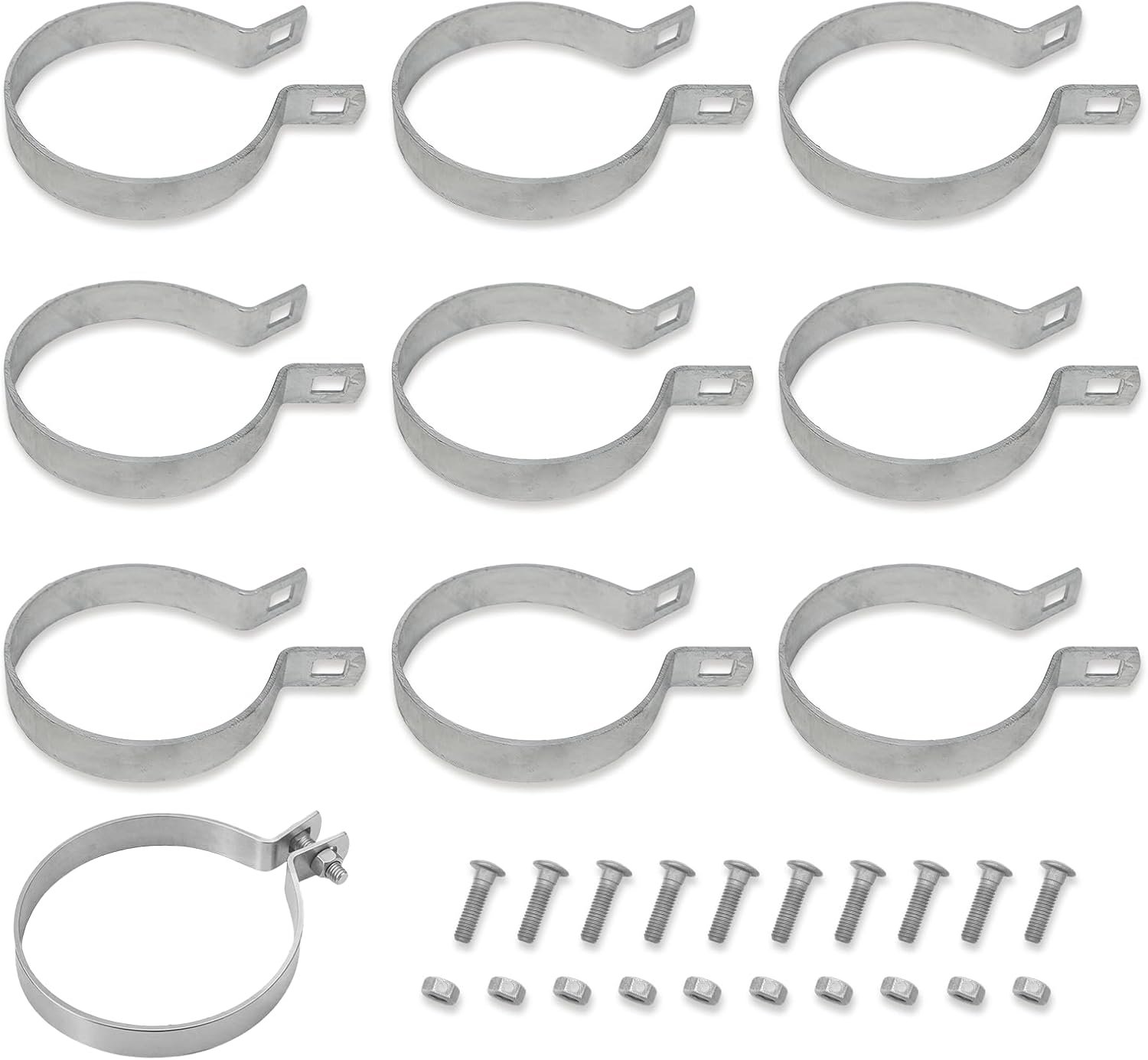

Each package contains 10 brace bands, 10 bolts and 10 nuts. Select the band by the actual outside diameter of the post or pipe, not by an assumed nominal pipe size.
Technical Specifications
| Item | Specification |
|---|---|
| Product type | Chain-link fence brace band |
| Primary function | Attaches rail ends and compatible fence fittings to terminal posts |
| Material | Steel |
| Finish | Hot-dip galvanized |
| Pack contents | 10 brace bands, 10 bolts and 10 nuts |

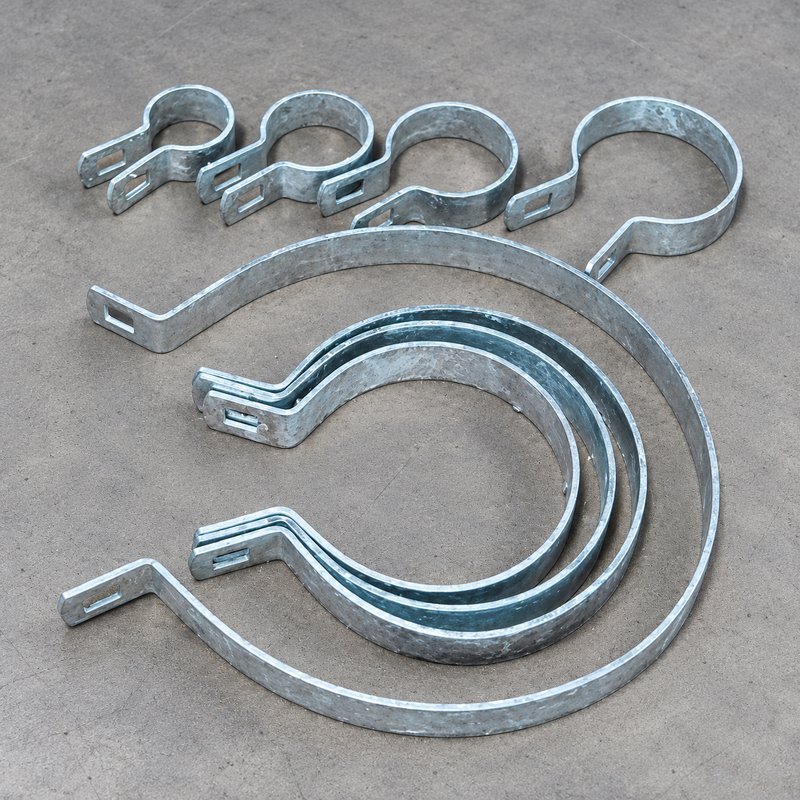

| Available post ODs | 1-3/8"; 1-5/8"; 1-7/8"; 2-3/8"; 3-1/2"; 4"; 4-1/2"; 6-5/8" |
| Number of size options | 8 |

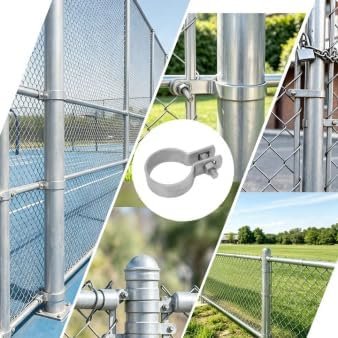

| Typical post locations | End posts, corner posts and gate posts |
| Typical compatible fittings | Rail end cups, truss-rod holders, bottom-wire fittings and other appropriately sized chain-link fence hardware |
Selection & Installation Notes
- Measure the post’s outside diameter at the installation location.
- Select the matching Post OD option; do not select by rail diameter or fence height.
- Confirm the brace band, rail end or accessory, and terminal post are mutually compatible before installation.
- Position the band around the post, align the fitting between the tabs, and install the supplied bolt and nut. Complete final tightening after the rail or accessory has been aligned.
- For tension-bar and fence-fabric attachment, use a correctly sized tension band instead.
Ordering notice: this finish has its own Amazon product link. Select the required post OD on Amazon before ordering. For mixed sizes or project quantities, request bulk pricing.
